LNEX 121008SR-M:M6330

LNEX 121008SR-M:M6330

SKU DOR8184332
by Dormer Pramet
Primary Use:

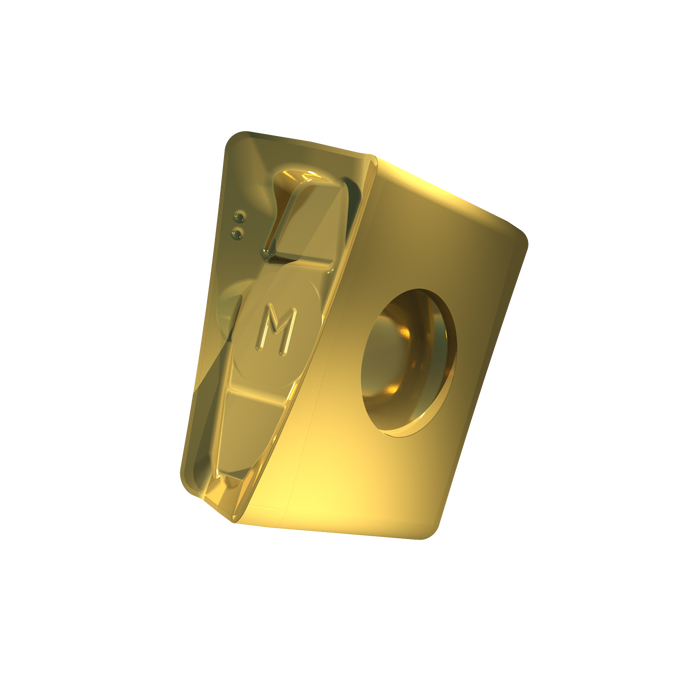

Double-sided milling insert LNEX 1210, rectangular for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range P20 -P35 for machining of steel with shoulder mills SLN12X

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$34.97 - $34.97
$34.97
$34.97 - $34.97
$34.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

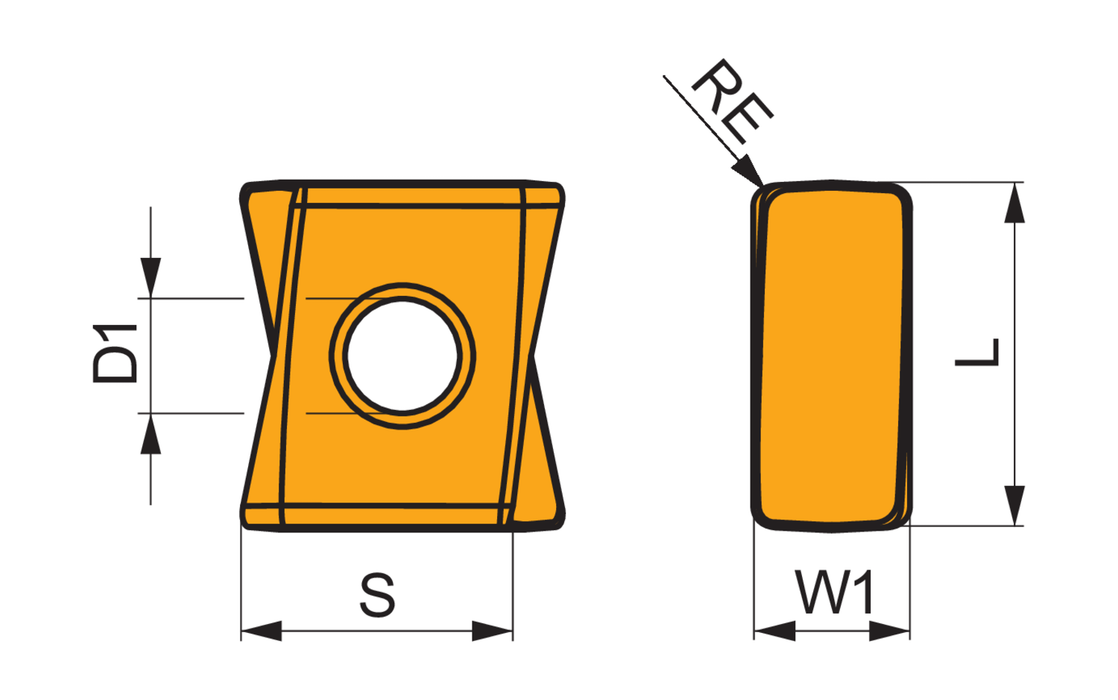

Insert Design: LNEX 12

Insert Shape Code: L - rectangular

Insert Thickness: 0.404

Chip Breaker: M

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8184332

EAN: 3603603953796

MFG Part Number: 8184332
