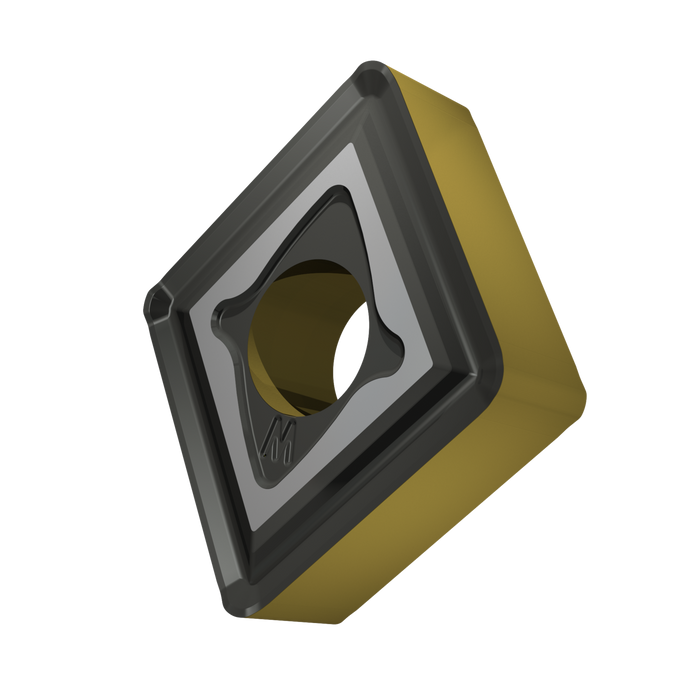

CNMG 433W-MR:T9415

CNMG 433W-MR:T9415

SKU DOR8194906
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker MR with WIPER edge design, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for medium to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.61 - $16.61
$16.61
$16.61 - $16.61
$16.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: W-MR

Grade: T9415

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 8194906

EAN: 3603603971097

MFG Part Number: 8194906
