G7022

G7022

SKU DOR8203196
by Dormer Pramet
Primary Use: Possible Use:

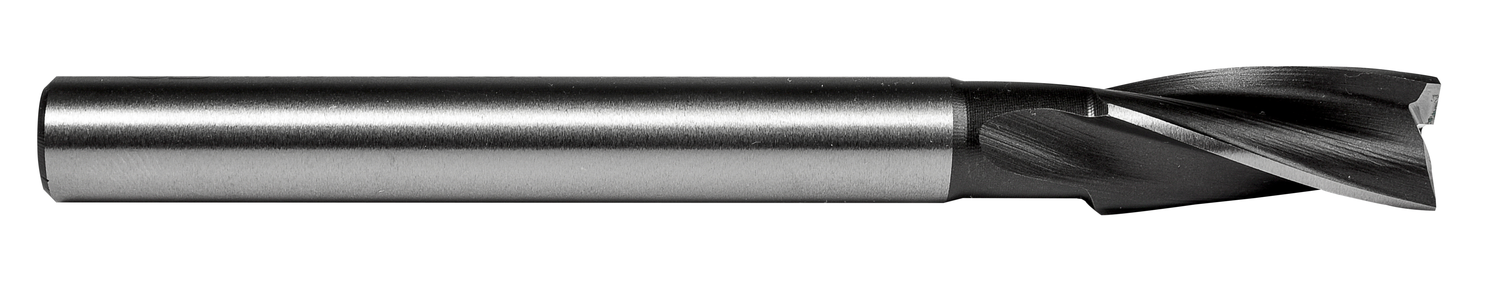

Interchangeable pilot type counterbore body with 5-flutes, diameter 2" with an overall length of 8.3/8" and a flute length of 2.1/2" and 1.1/2" straight shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 1/2" and a maximum pilot guide diameter of 1.15/16", HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$646.97 - $646.97
$646.97
$646.97 - $646.97
$646.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

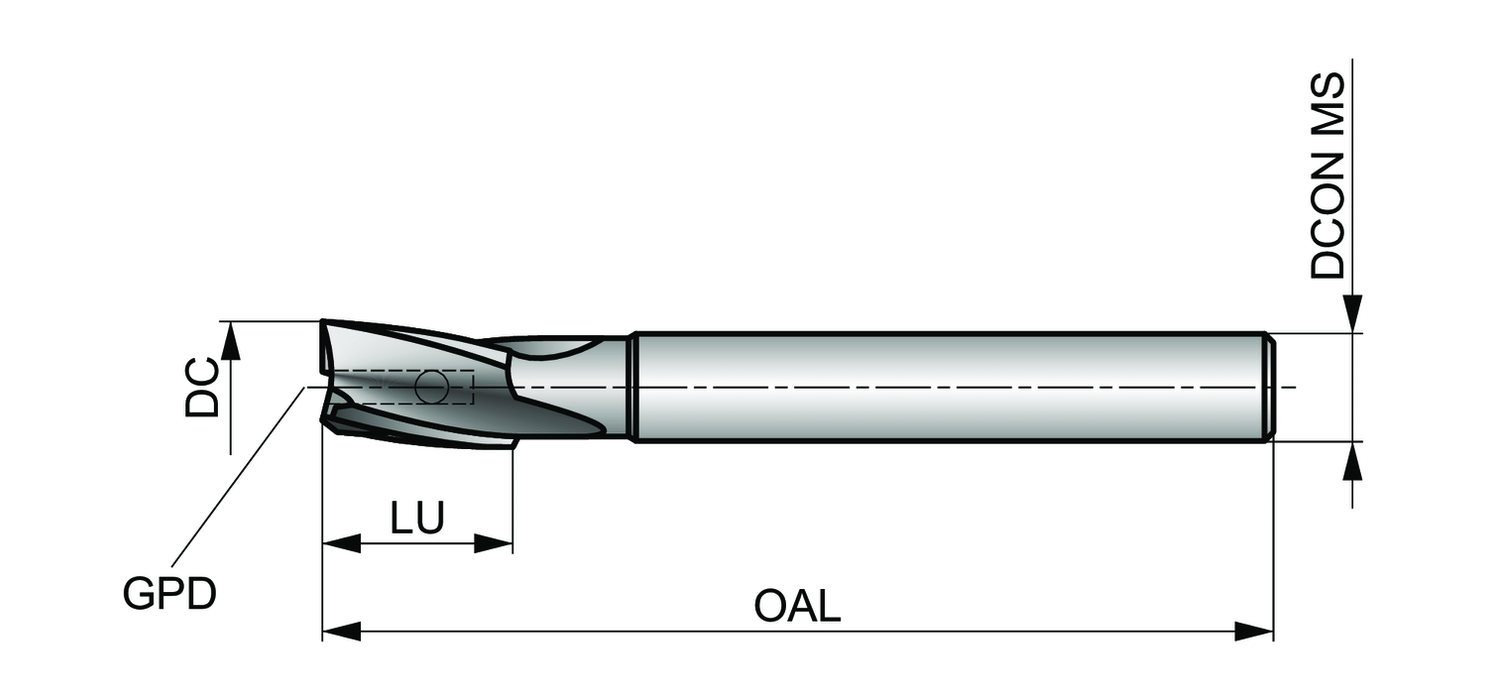

Material: HSS

Cutting Diameter - in (DC): 2.0

Cutting Diameter - mm (DC): 50.8

Overall Length (OAL): 8.375

Connetion Diameter: 1.5

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 2"

Grade: Bright

EDP: 8203196

EAN: 3603607031544

MFG Part Number: 8203196
