G7031.3/8

G7031.3/8

SKU DOR8203208
by Dormer Pramet
Primary Use: Possible Use:

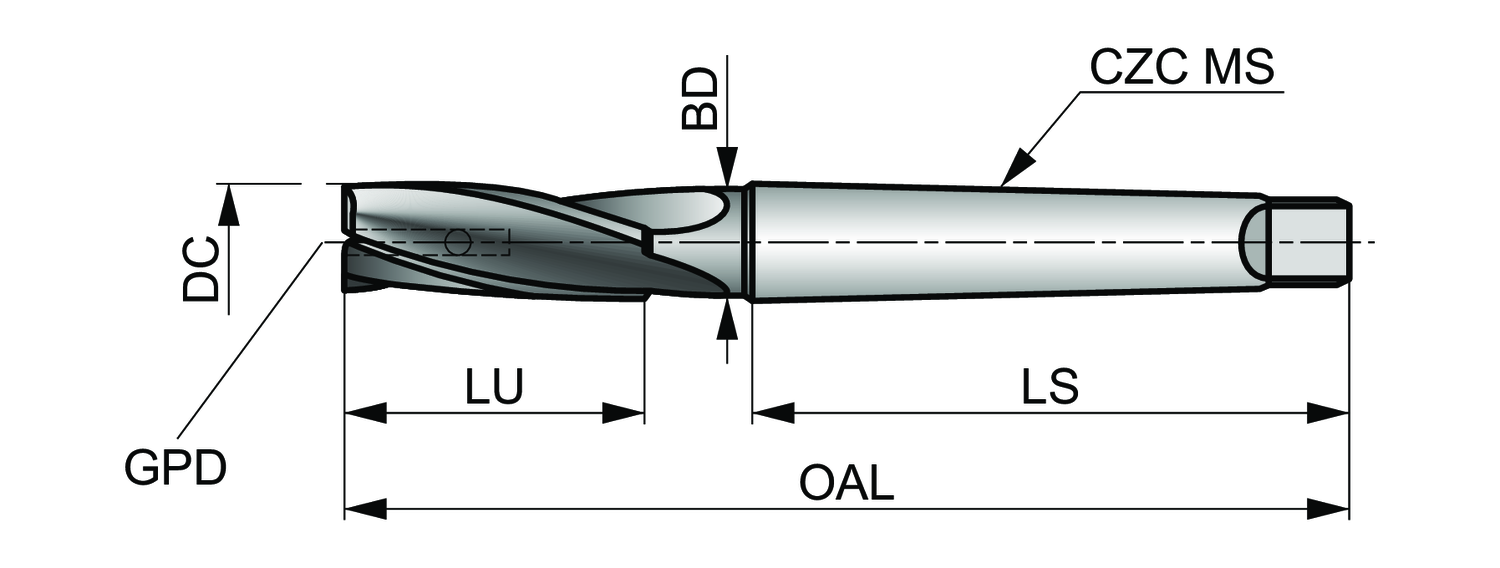

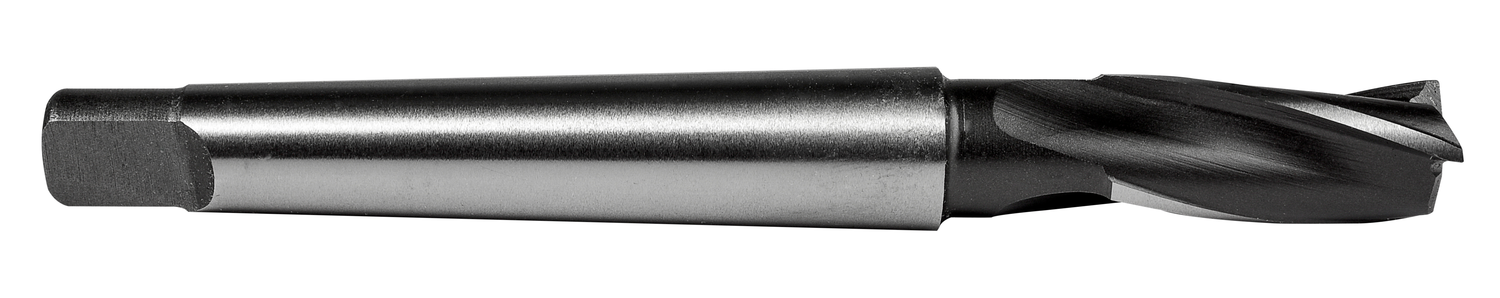

Interchangeable pilot type counterbore body with 5-flutes, diameter 1.3/8" with an overall length of 6.5/8" and a flute length of 2" and MT 3 Morse-taper shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 3/8" and a maximum pilot guide diameter of 1.5/16", HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$321.37 - $321.37
$321.37
$321.37 - $321.37
$321.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 1.375

Cutting Diameter - mm (DC): 34.93

Overall Length (OAL): 6.625

Connetion Diameter: 0.875

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1.3/8

Grade: Bright

EDP: 8203208

EAN: 3603607031667

MFG Part Number: 8203208
