G7032.1/8

G7032.1/8

SKU DOR8203212
by Dormer Pramet
Primary Use: Possible Use:

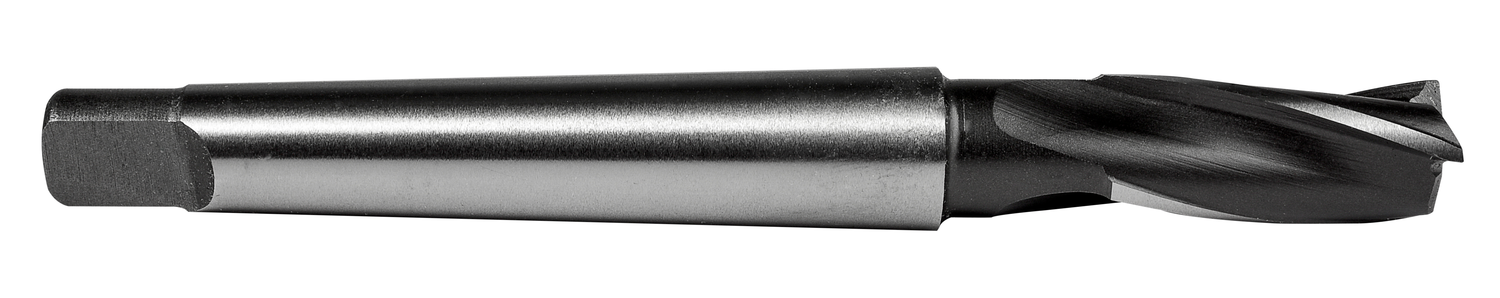

Interchangeable pilot type counterbore body with 5-flutes, diameter 2.1/8" with an overall length of 9.7/8" and a flute length of 2.1/2" and MT 5 Morse-taper shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 1/2" and a maximum pilot guide diameter of 2.1/16", HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$814.53 - $814.53
$814.53
$814.53 - $814.53
$814.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

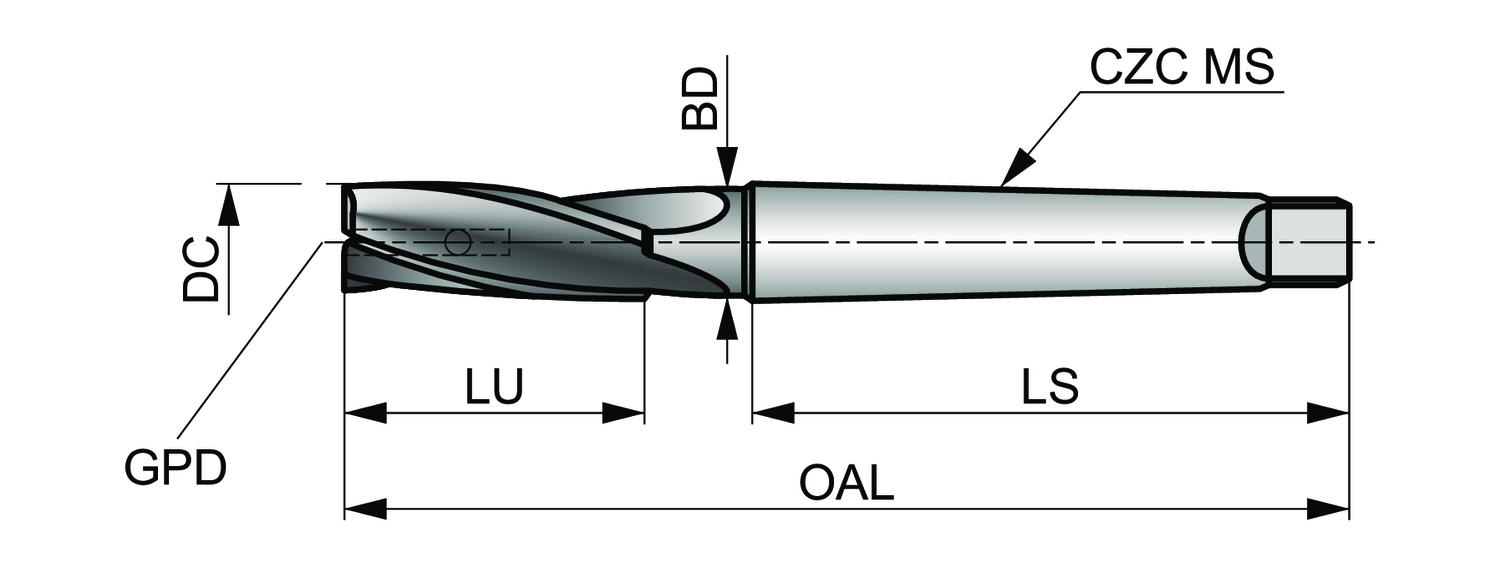

Material: HSS

Cutting Diameter - in (DC): 2.125

Cutting Diameter - mm (DC): 53.98

Overall Length (OAL): 9.875

Connetion Diameter: 1.75

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 2.1/8

Grade: Bright

EDP: 8203212

EAN: 3603607031704

MFG Part Number: 8203212
