G7055/8

G7055/8

SKU DOR8203299
by Dormer Pramet
Primary Use: Possible Use:

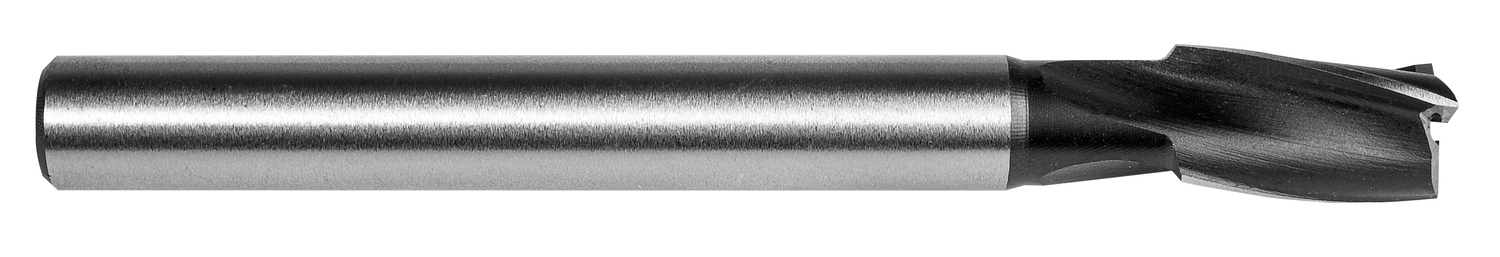

Interchangeable pilot type counterbore body with 4-flutes, diameter 5/8" with an overall length of 4.1/4" and a flute length of 5/8" and 1/2" reduced straight shank, according to ANSI standard to produce a flat bottom seat for socket-head cap screws with the aid of a detachable pilot with a mounting diameter of 1/8" and a maximum pilot guide diameter of 9/16", HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$107.83 - $107.83
$107.83
$107.83 - $107.83
$107.83
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

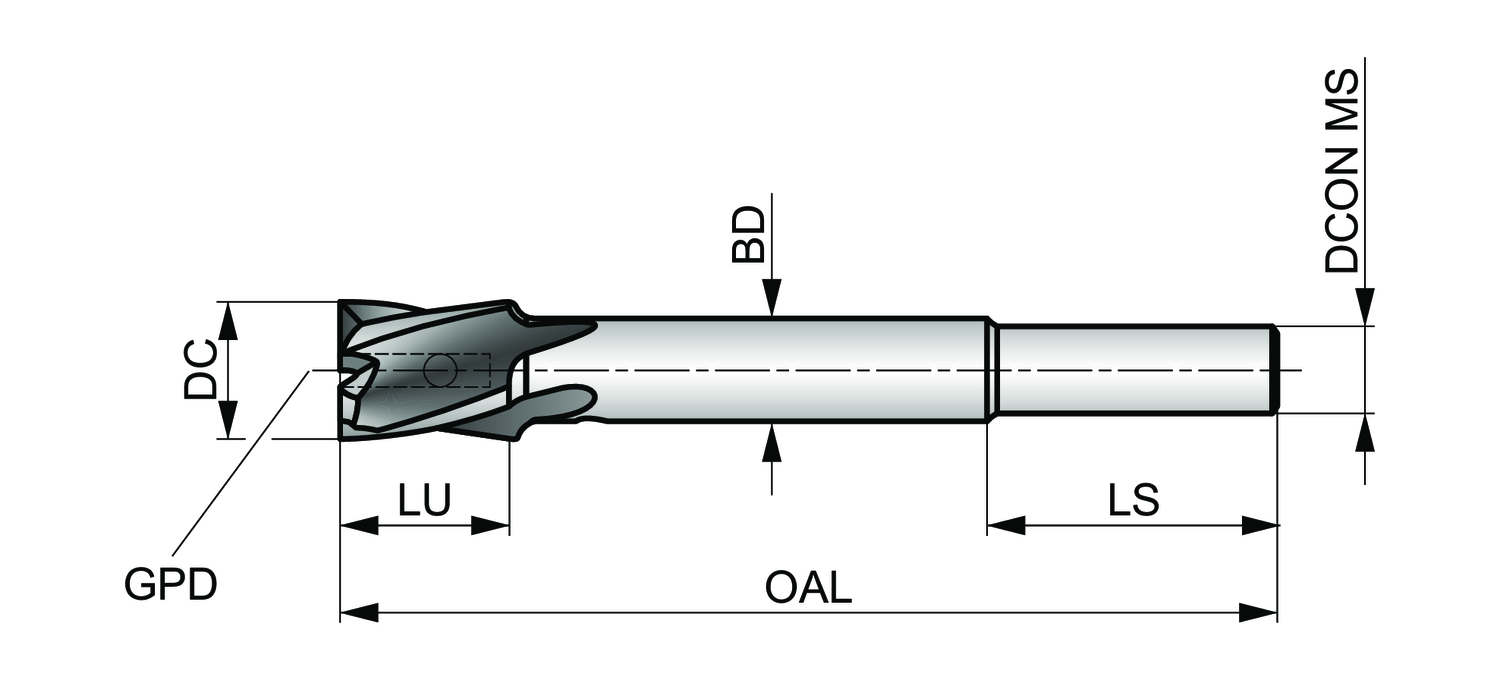

Material: HSS

Cutting Diameter - in (DC): 0.625

Cutting Diameter - mm (DC): 15.88

Overall Length (OAL): 4.25

Connetion Diameter: 0.5

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/8

Grade: Bright

EDP: 8203299

EAN: 3603607032572

MFG Part Number: 8203299
