CNMG 643-RM:T9415

CNMG 643-RM:T9415

SKU DOR8244255
by Pramet

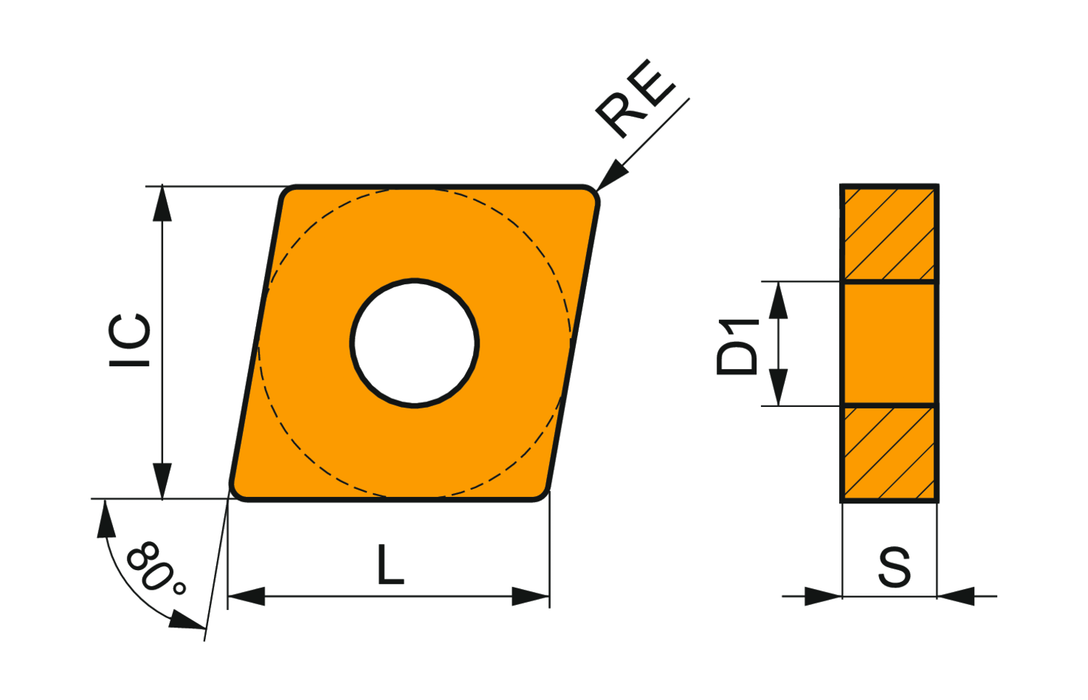

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for medium to heavy machining of steels

Sold in packs of: 10

For more information about this product, click here
$28.76 - $28.76
$28.76
$28.76 - $28.76
$28.76
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed Circle Diameter - IN: 0.75

Corner Radius - Inch: 0.047

Corner Radius - MM: 1.2

Grade: T9415

Chip Breaker: RM

Insert Design: CNMG

P - Steel and cast steel: Primary use

K - Cast Iron: Possible use

EAN: 3603604014380

MFG Part Number: 8244255
