TNMG 544-RM:T9415
SKU DOR8244315
by Pramet

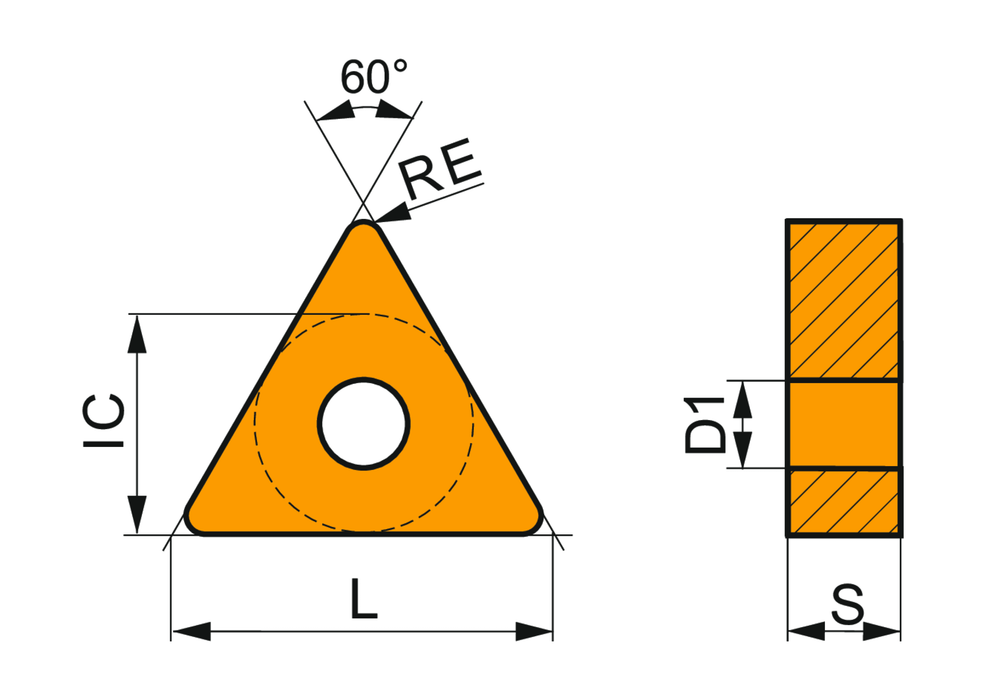

Double-sided negative turning insert, triangular with inscribed circle diameter of 5/8", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for medium to heavy machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$24.30
-
Original price
$24.30
Original price
$24.30
$24.30
-
$24.30
Current price
$24.30
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.625
Corner Radius - Inch: 0.063
Corner Radius - MM: 1.6
Grade: T9415
Chip Breaker: RM
Insert Design: TNMG
P - Steel and cast steel: Primary use
K - Cast Iron: Possible use
EAN: 3603604014984
MFG Part Number: 8244315
