VBMT 330.5-FM:T9415
SKU DOR8244384
by Pramet

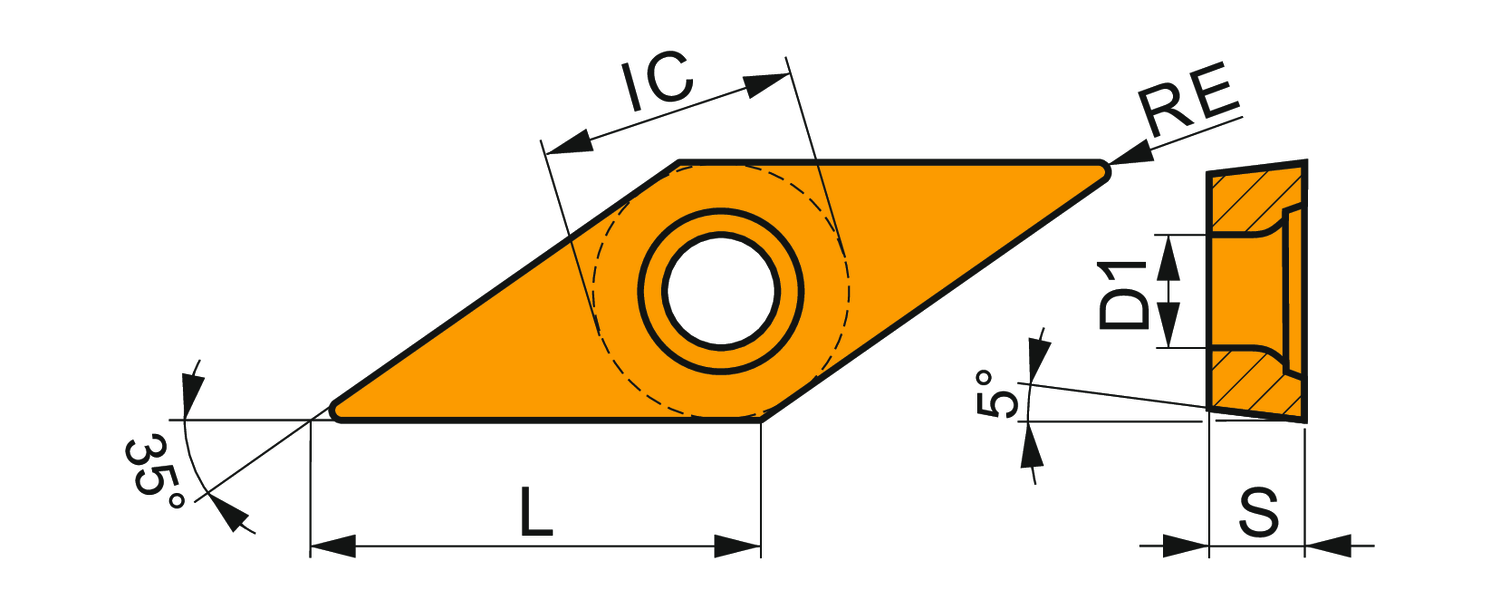

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$22.50
-
Original price
$22.50
Original price
$22.50
$22.50
-
$22.50
Current price
$22.50
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.375
Corner Radius - Inch: 0.008
Corner Radius - MM: 0.2
Grade: T9415
Chip Breaker: FM
Insert Design: VBMT
P - Steel and cast steel: Primary use
K - Cast Iron: Possible use
EAN: 3603604017473
MFG Part Number: 8244384
