PSSNL 4040 S 19

PSSNL 4040 S 19

SKU DOR8281404
by Dormer Pramet
Primary Use: Possible Use:

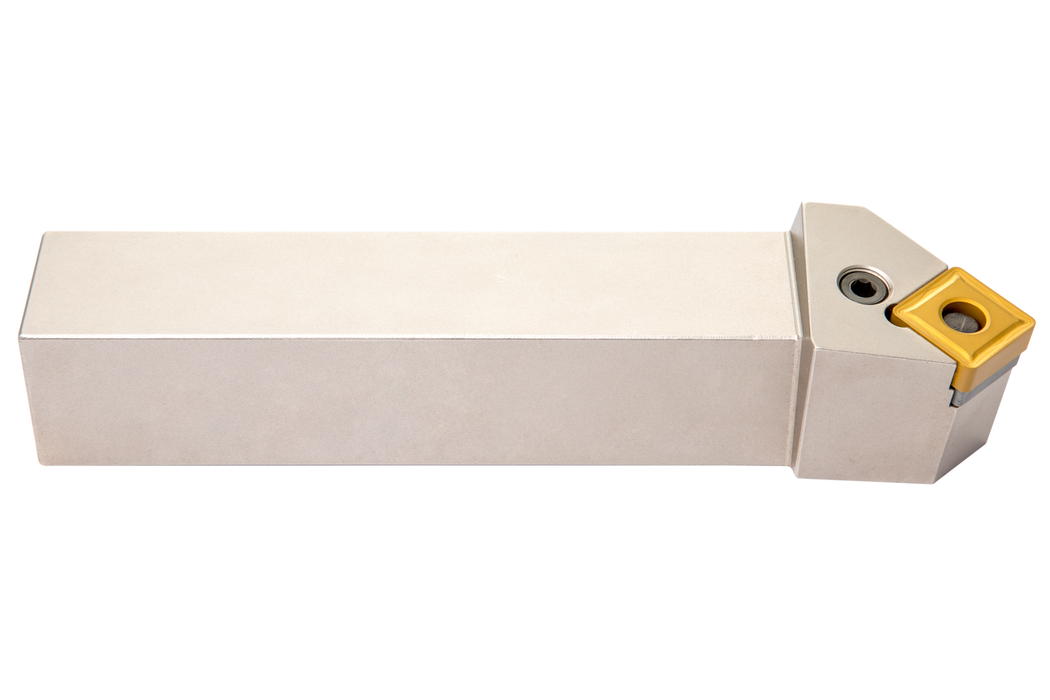

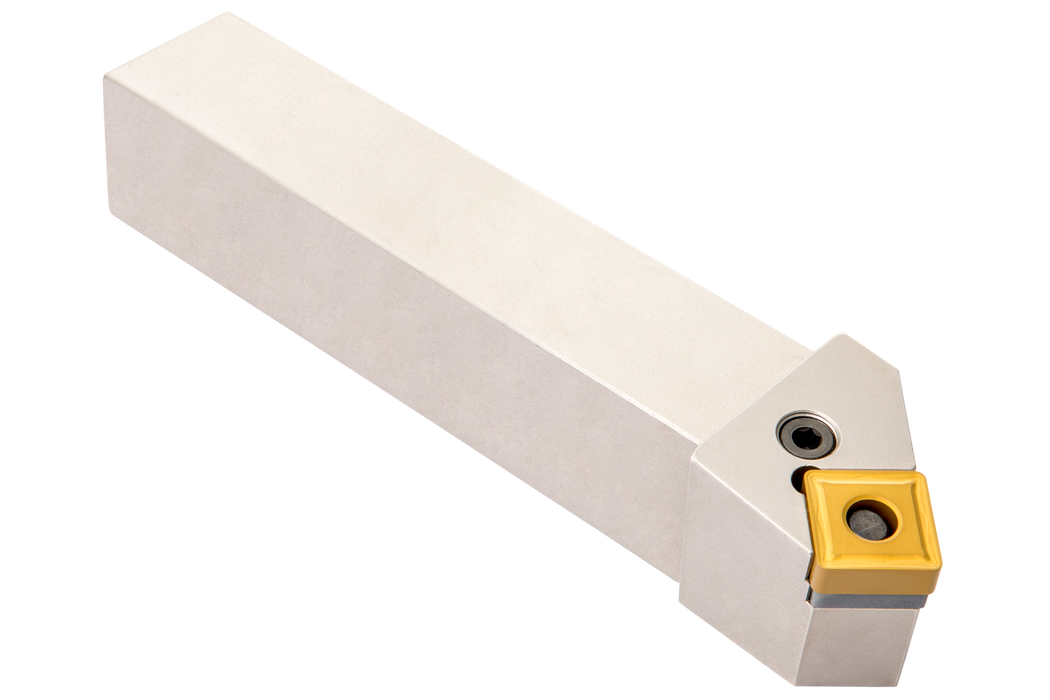

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), left hand 45° side cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$295.00 - $295.00
$295.00
$295.00 - $295.00
$295.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Through Coolant: 0

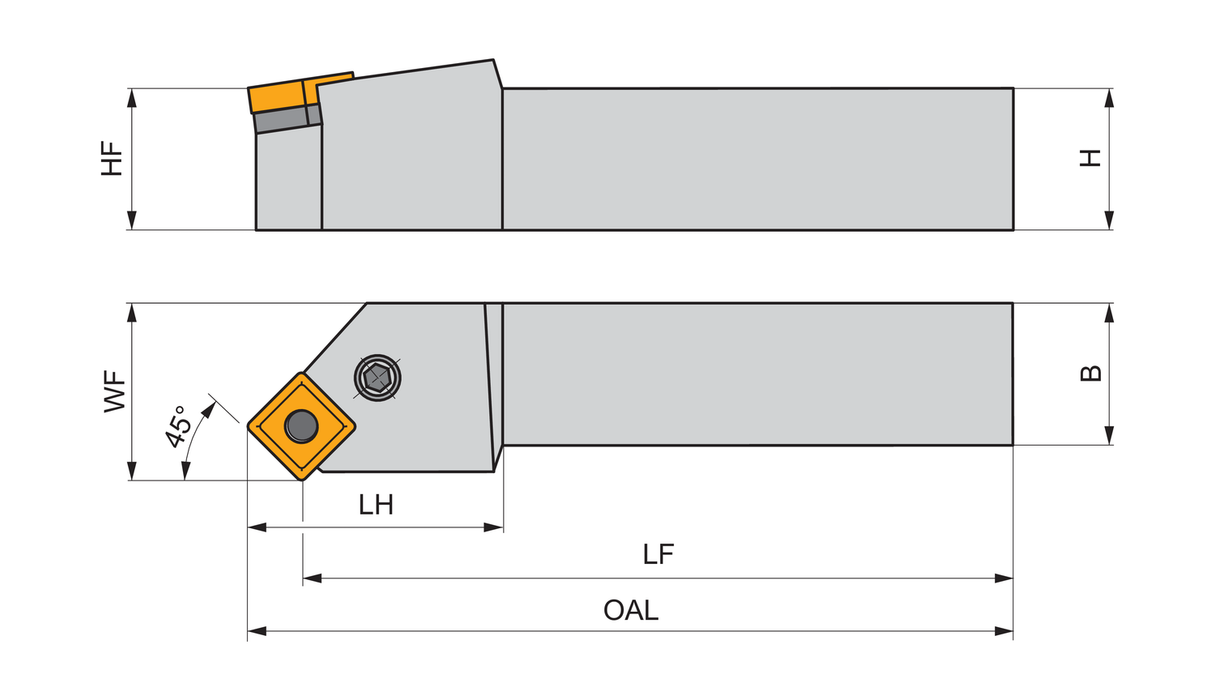

Overall Length (OAL): 10.335

Height: 1.575

Insert Designation: ["SN.. 1906.."]

Functional Length: 9.843

EDP: 8281404

EAN: 3603604052207

MFG Part Number: 8281404
