SNMG 544-NRM:T8430

SNMG 544-NRM:T8430

SKU DOR8342373
by Dormer Pramet
Primary Use: Possible Use:

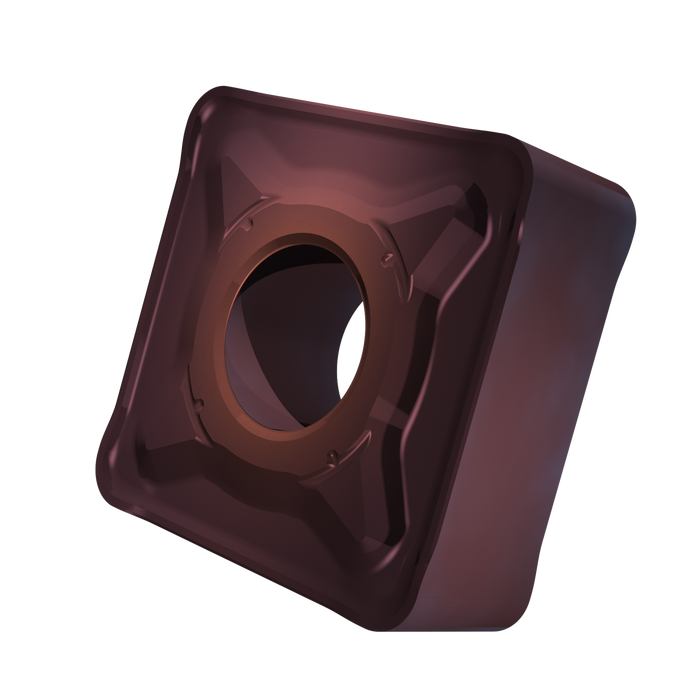

Double-sided negative turning insert, square with inscribed circle diameter of 5/8", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NRM, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 - P40 and M20 - M35, for medium to heavy machining of steels and stainless-steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.93 - $22.93
$22.93
$22.93 - $22.93
$22.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: SNMG

Insert Shape Code: S - square

Insert Thickness: 0.25

Inscribed Circle Diameter: 0.625

Chip Breaker: NRM

Grade: T8430

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 8342373

EAN: 3603604108225

MFG Part Number: 8342373
