A3214.5

A3214.5

SKU DOR8349657
by Dormer Pramet
Primary Use: Possible Use:

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 4,5 mm with an overall length of 77 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.00 - $3.00
$3.00
$3.00 - $3.00
$3.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

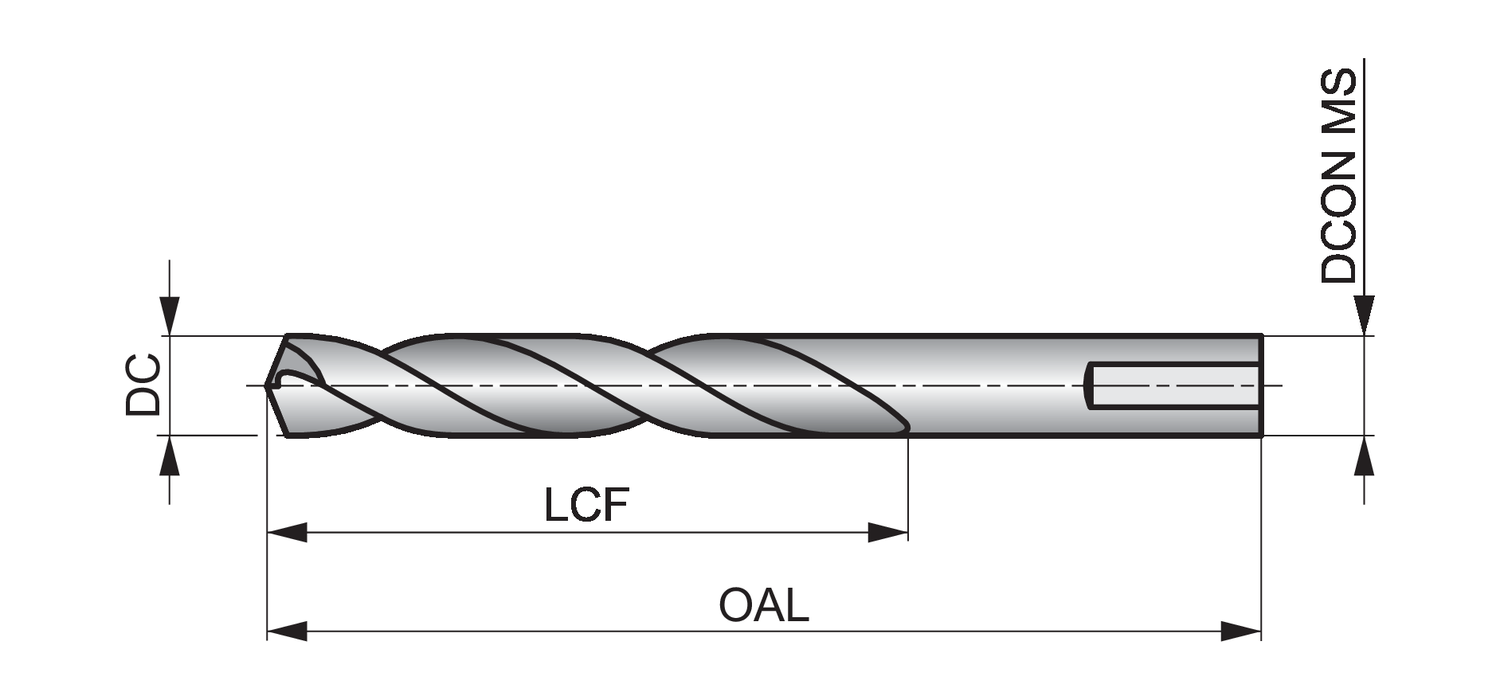

Material: HSS

Cutting Diameter - in (DC): 0.177

Cutting Diameter - mm (DC): 4.5

Drill Point Angle - deg: 135

Flute Length: 1.9291

Lenxth x Diameter Ratio: 3.5

Overall Length (OAL): 3.0315

Connetion Diameter: 0.1772

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Grade: ST/Bronze

EDP: 8349657

EAN: 3603607072035

MFG Part Number: 8349657
