A32112.0

A32112.0

SKU DOR8349679
by Dormer Pramet
Primary Use: Possible Use:

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 12 mm with an overall length of 126 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 5

For more information about this product, click here
$16.79 - $16.79
$16.79
$16.79 - $16.79
$16.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

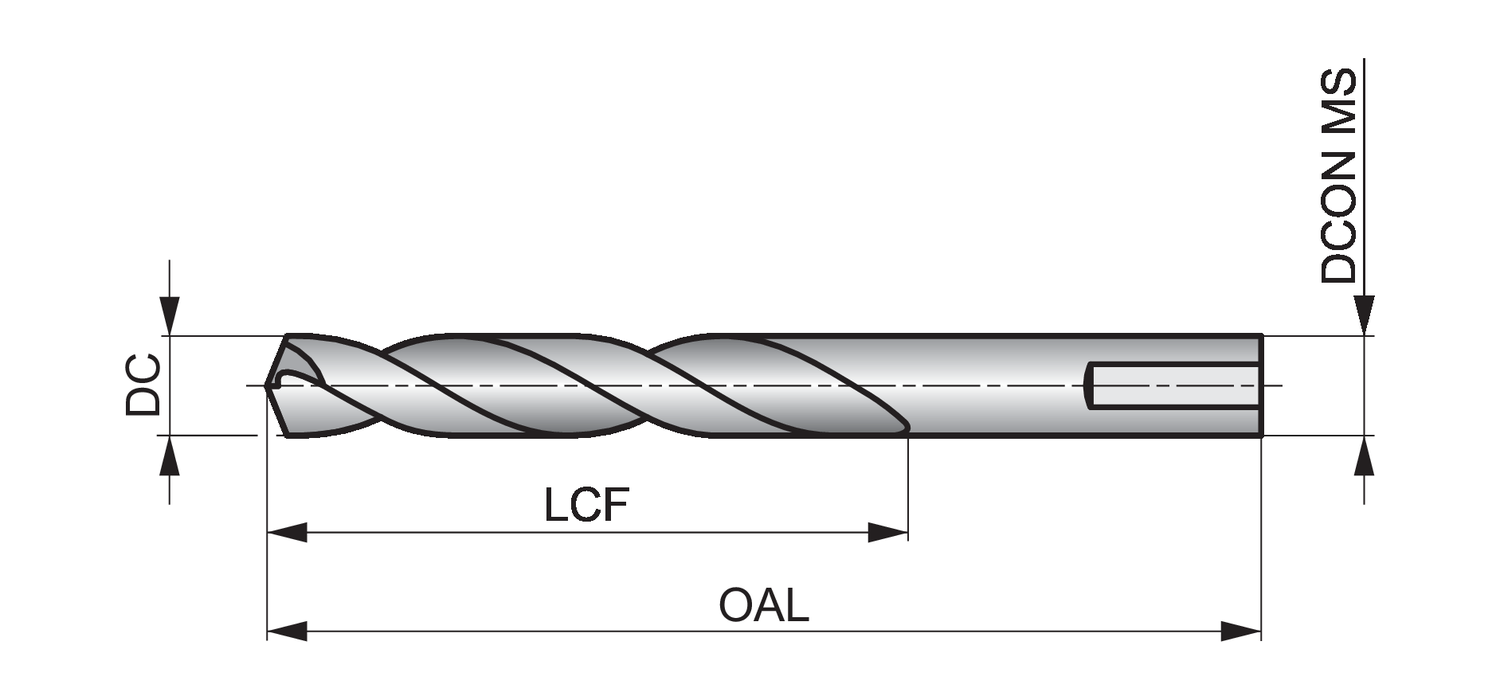

Cutting Diameter - in (DC): 0.472

Cutting Diameter - mm (DC): 12.0

Drill Point Angle - deg: 135

Flute Length: 3.3465

Lenxth x Diameter Ratio: 3.5

Overall Length (OAL): 4.9606

Connetion Diameter: 0.4724

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Grade: ST/Bronze

EDP: 8349679

EAN: 3603607072257

MFG Part Number: 8349679
