LNMT 311240:T9415
SKU DOR8366639
Primary Use:
Possible Use:

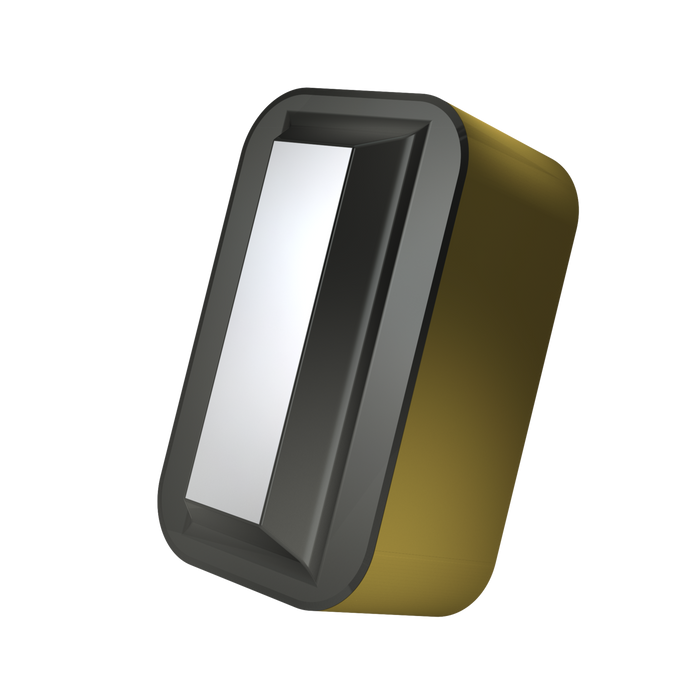

Single-sided negative barpeeling insert, rectangular with a length of 31mm, 12mm thick for 4mm depth of cut, indexing accuracy according to ISO-tolerance class-M with 240 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for steels
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$82.14
-
Original price
$82.14
Original price
$82.14
$82.14
-
$82.14
Current price
$82.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

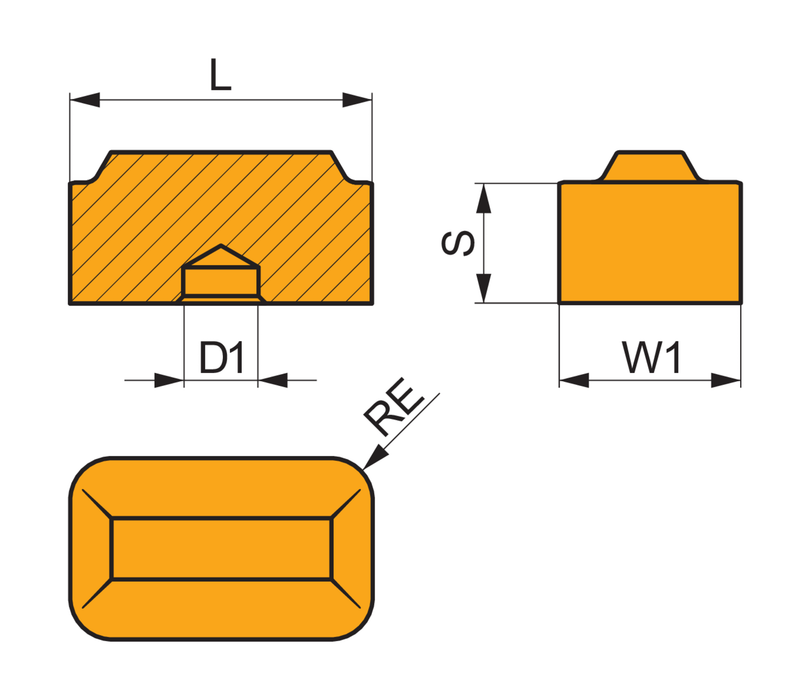

Insert Design: LNMT
Insert Shape Code: L - rectangular
Insert Thickness: 0.5
Grade: T9415
Corner Radius - in: 0.187
Corner Radius - mm: 4.76
EDP: 8366639
EAN: 3603604127042
MFG Part Number: 8366639
