SNMX 191140SN-TF:T9415

SNMX 191140SN-TF:T9415

SKU DOR8366642
by Dormer Pramet
Primary Use: Possible Use:

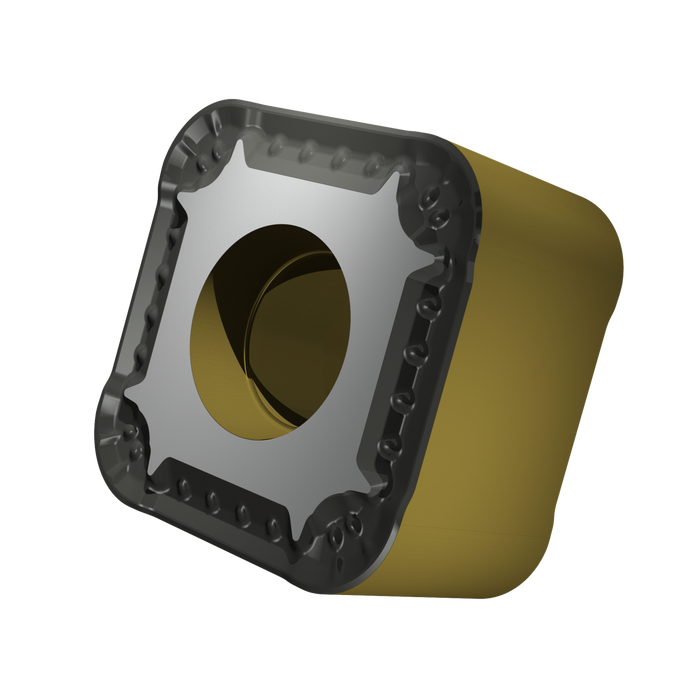

Special design negative turning insert, square with inscribed circle diameter of 19.05mm, 11mm thick, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker TF with rounded cutting edges with facet, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$45.79 - $45.79
$45.79
$45.79 - $45.79
$45.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

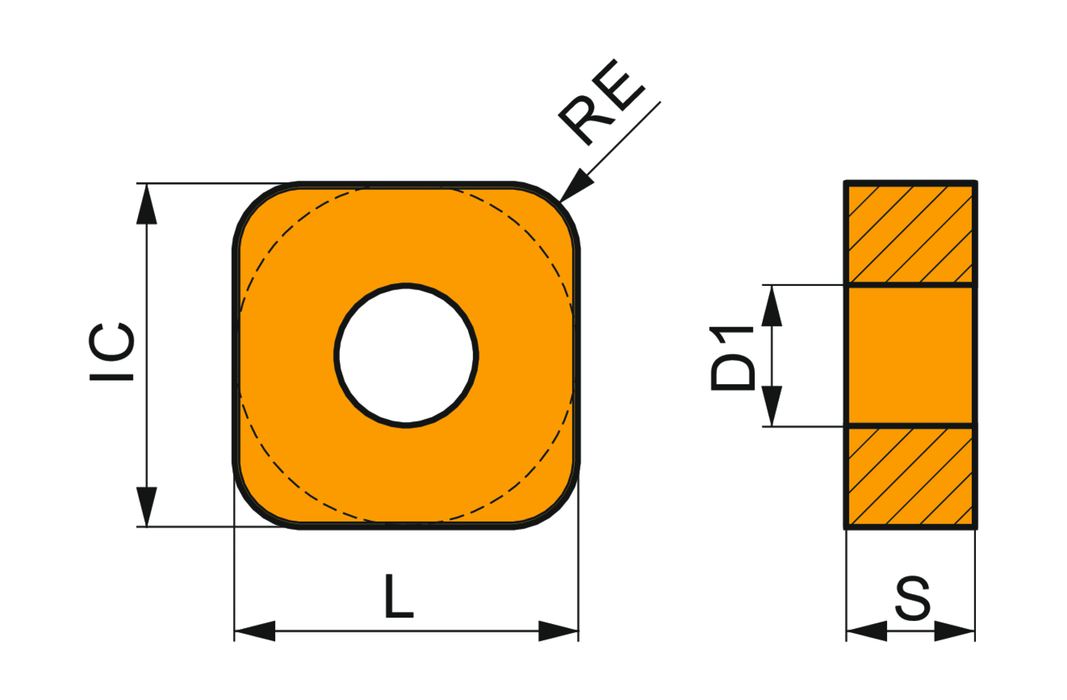

Insert Design: SNMX 19

Insert Shape Code: S - square

Insert Thickness: 0.433

Inscribed Circle Diameter: 0.75

Chip Breaker: TF

Grade: T9415

Corner Radius - in: 0.157

Corner Radius - mm: 4

EDP: 8366642

EAN: 3603604127073

MFG Part Number: 8366642
