R0032.0
R0032.0
R0032.0
R0032.0

R0032.0

SKU DOR8402822
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.44 CAD - $26.44 CAD
$26.44 CAD
$26.44 CAD - $26.44 CAD
$26.44 CAD

Sold in packs of: 1

Cutting diameter 2 mm, overall length 49 mm, flute length 24 mm, and maximal drilling depth 8 mm without pecking.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R0032.0
GradeBright/TiN
Product Number8402822
Product FamilyR003

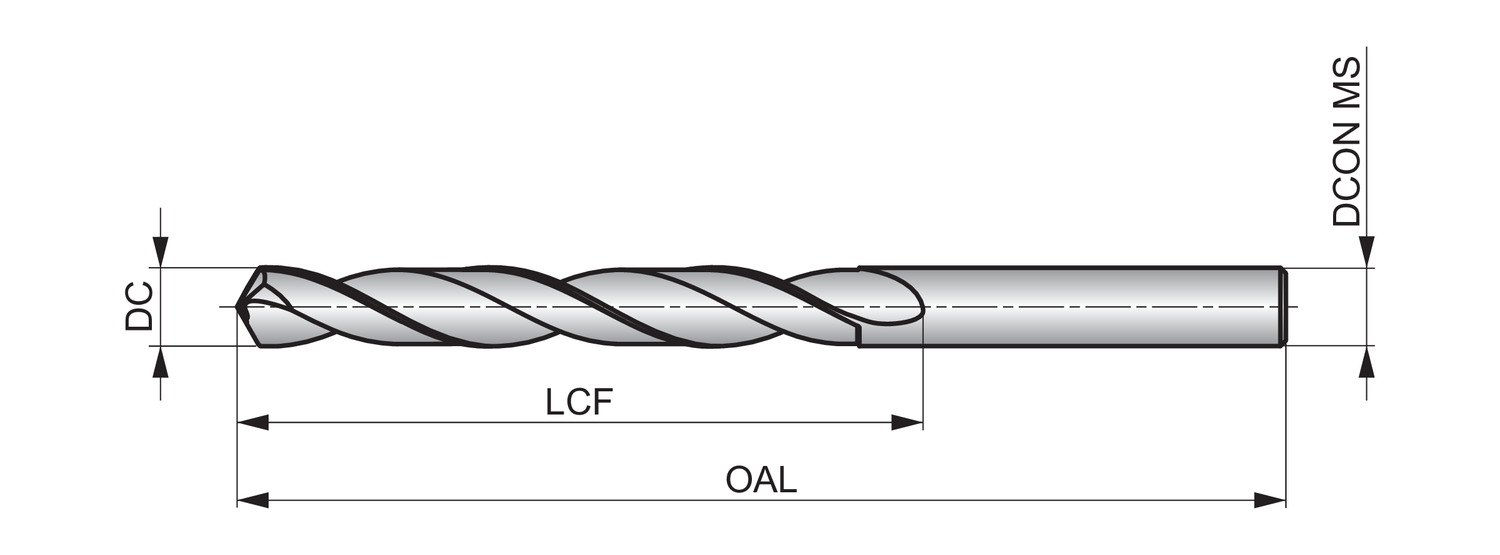

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)2.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 338
Reference Numbers
EDP Number8402822
EAN3603607083437
File Type Download
R0032.0 — 3D Model STP Download
R0032.0 — 2D Model DXF Download
R0032.0 — Line Drawing PDF Download
