A221N000

SKU DOR8442329
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $26.43 CAD - Original price $26.43 CAD
Original price
$26.43 CAD
$26.43 CAD - $26.43 CAD
Current price $26.43 CAD

Sold in packs of: 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A221N000
GradeBright
Product Number8442329
Product FamilyA221
Dimensions
Cutting Diameter — in (DC)0.02"
Cutting Diameter — mm (DC)0.51 mm
Overall Length — in (OAL)1.25"
Overall Length — mm (OAL)31.75 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Through Coolant No
StandardANSI
Reference Numbers
EDP Number8442329
EAN3603607090619
File Type Download

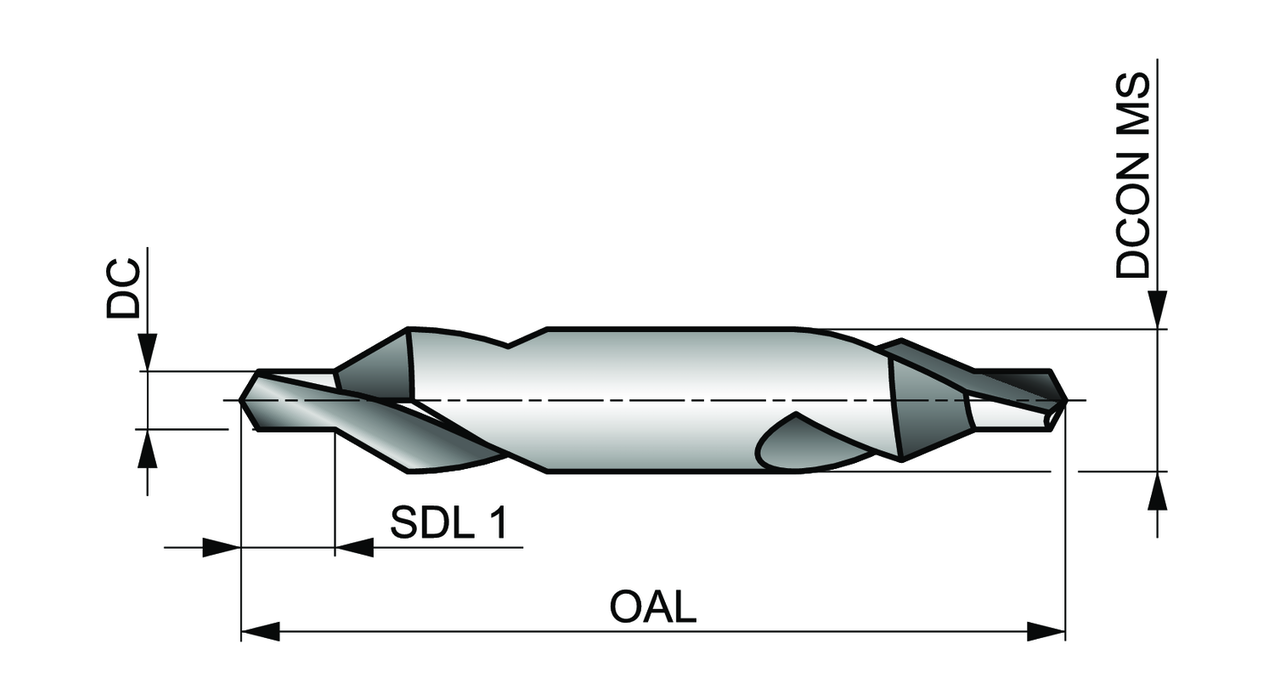

A221N000 — Line Drawing PDF Download
