E397UNF1/2
SKU DOR8464229
Primary Use:
Possible Use:
Thread size UNF 0.5 inch - 20 TPI, with thread tolerance class 93707, and maximum threading depth 1.25 inches.
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$41.04
-
Original price
$41.04
Original price
$41.04
$41.04
-
$41.04
Current price
$41.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

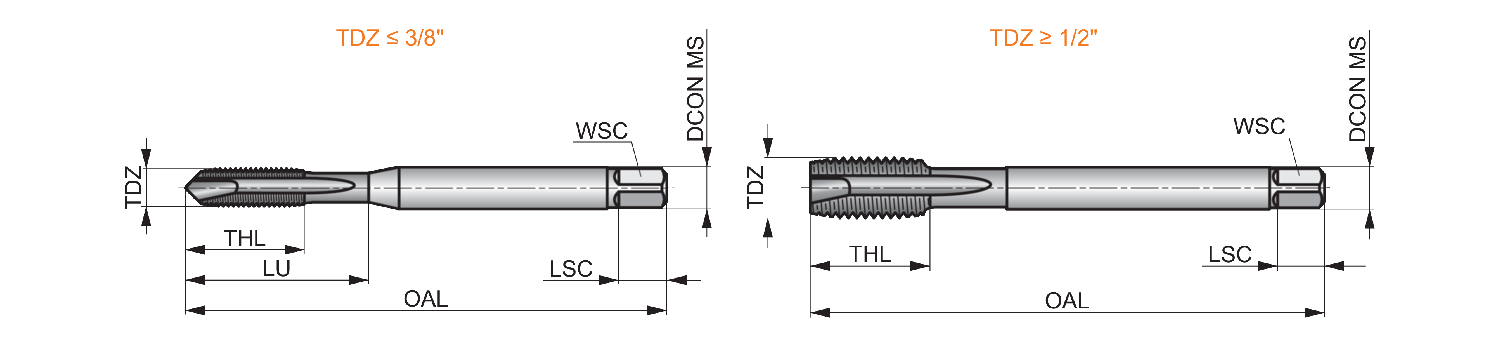

Material: HSS-E-PM
Lenxth x Diameter Ratio: 2.5
Overall Length (OAL): 4.331
Connetion Diameter: 0.354
Tool Direction: Right
Diameter Size: 1/2
Thread Diameter - in: 0.5
Thread Diameter - mm: 12.7
TPI: 20.0
Thread Form: UNF - Unified Fine
Grade: TiCN
EDP: 8464229
EAN: 3603607095706
MFG Part Number: 8464229
