E698UNF5/16
SKU DOR8464299
Primary Use:
Possible Use:
Thread size UNF 0.3125 inch - 24 TPI, with thread tolerance class 93707, H4 pitch diameter limits, and maximum threading depth 0.7813 inches.
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$28.79
-
Original price
$28.79
Original price
$28.79
$28.79
-
$28.79
Current price
$28.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

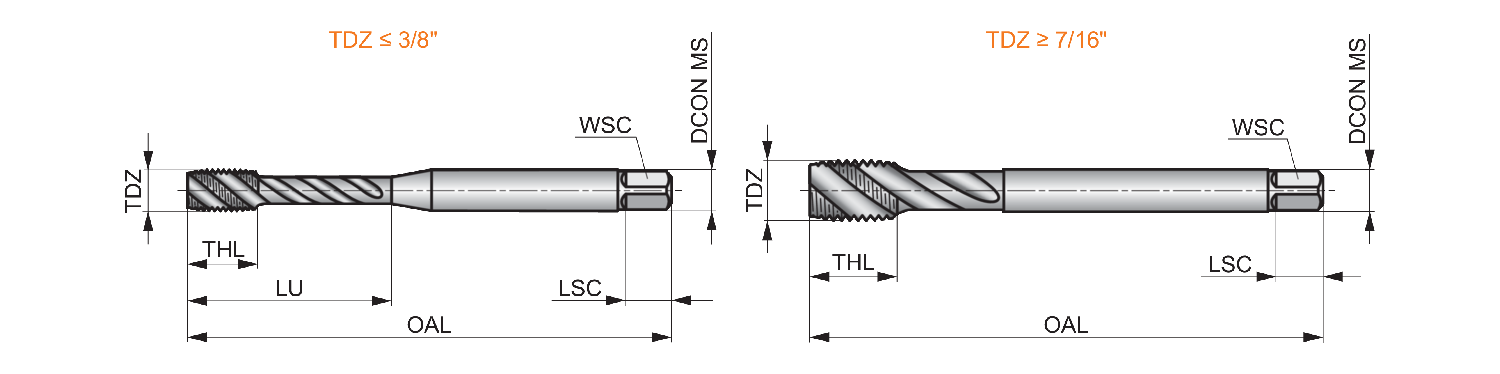

Material: HSS-E-PM
Lenxth x Diameter Ratio: 2.5
Overall Length (OAL): 3.543
Connetion Diameter: 0.318
Tool Direction: Right
Diameter Size: 5/16
TPI: 24.0
Thread Form: UNF - Unified Fine
Usable Length: 1.339
Grade: TiCN
EDP: 8464299
EAN: 3603607096406
MFG Part Number: 8464299
