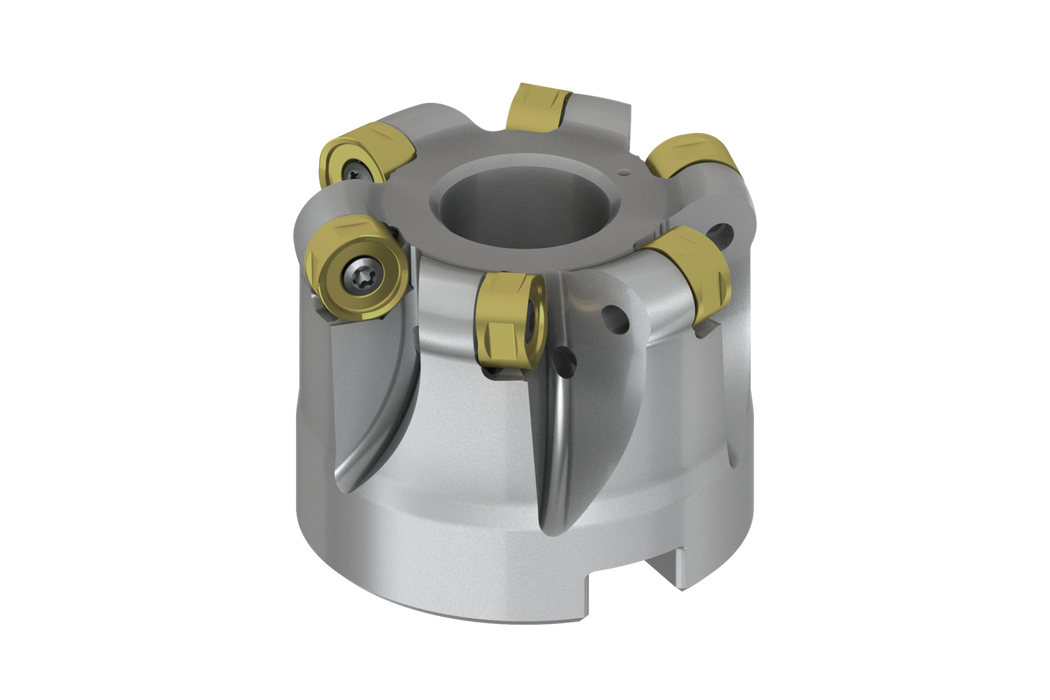

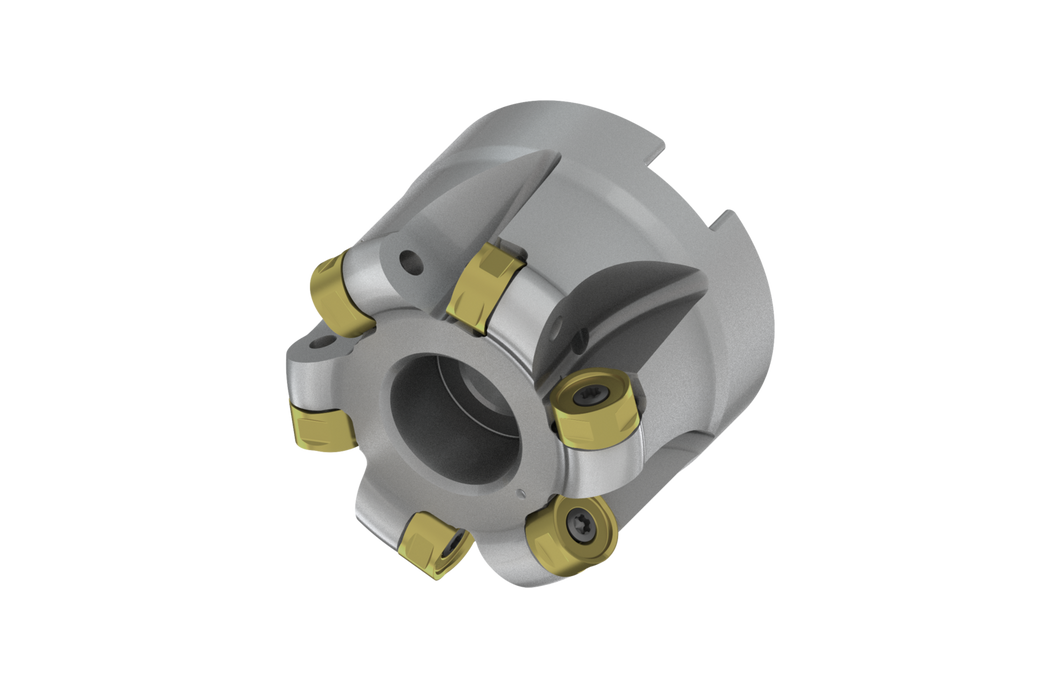

50A06R-SMORN10-C

50A06R-SMORN10-C

SKU DOR8547711
by Dormer Pramet
Primary Use:

Copy face mill with double negative geometry which utilises 6 of RNMU 1004MOT.. double-sided inserts, cutting diameter 50mm with 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of 4.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$601.00 - $601.00
$601.00
$601.00 - $601.00
$601.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.575

Cutting Diameter - mm (DC): 40.0

Max Cut Diameter: 1.969

Connetion Diameter: 0.492

Max. Depth of Cut: 0.197

Insert Design: RNMU10

Shank: Shell mill DIN 8030 A

Cutter Design: SRN10

Functional Length: 1.575

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8547711

EAN: 3603604262088

MFG Part Number: 8547711
