32E3R042M16-SRN12-C

32E3R042M16-SRN12-C

SKU DOR8547831
by Dormer Pramet
Primary Use:

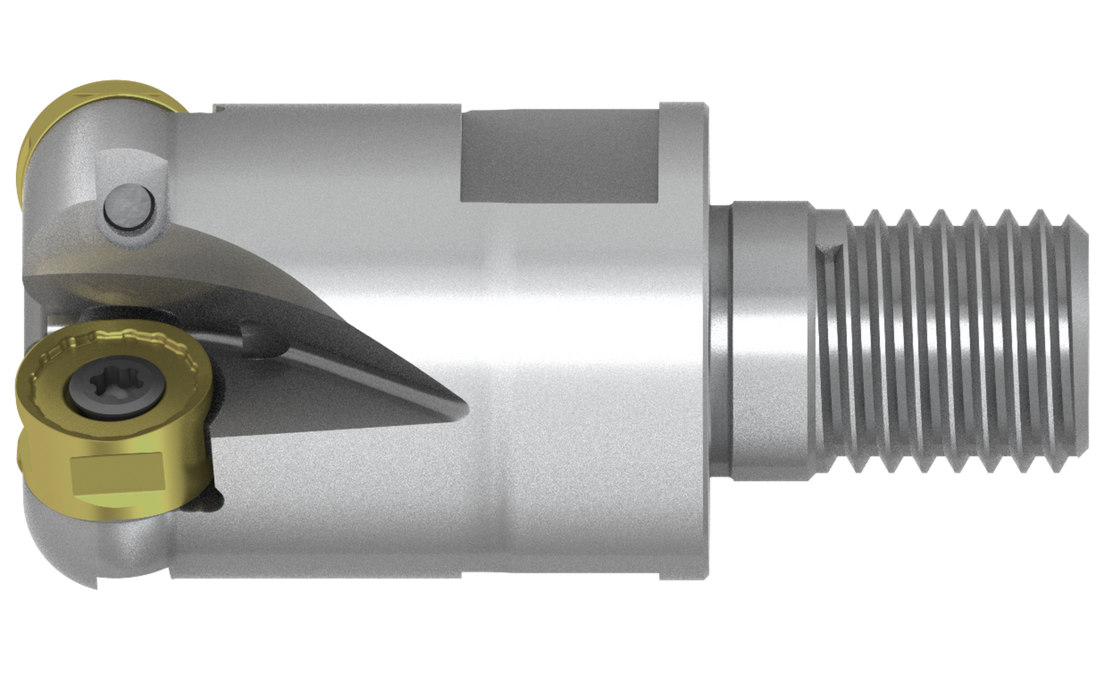

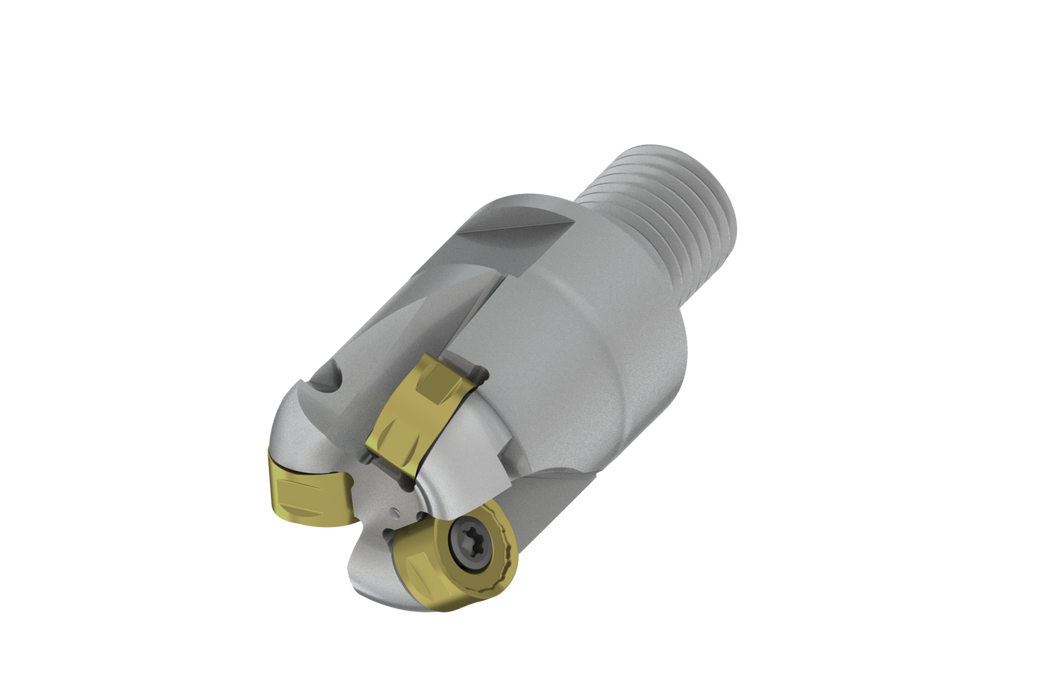

Copy face mill with double negative geometry which utilises 3 of RNMU 1205MOT.. double-sided inserts, cutting diameter 32mm with M16mm threaded shank for standard modular tool-holders, 42mm protrusion lenght, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of 5.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$458.00 - $458.00
$458.00
$458.00 - $458.00
$458.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 0.787

Cutting Diameter - mm (DC): 20.0

Max Cut Diameter: 1.26

Overall Length (OAL): 2.559

Connetion Diameter: 0.492

Max. Depth of Cut: 0.236

Shank: Threaded coupling

Cutter Design: SRN12

Functional Length: 1.654

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8547831

EAN: 3603604262149

MFG Part Number: 8547831
