150E4R134C125-ISRN12-C

150E4R134C125-ISRN12-C

SKU DOR8654381
by Dormer Pramet
Primary Use:

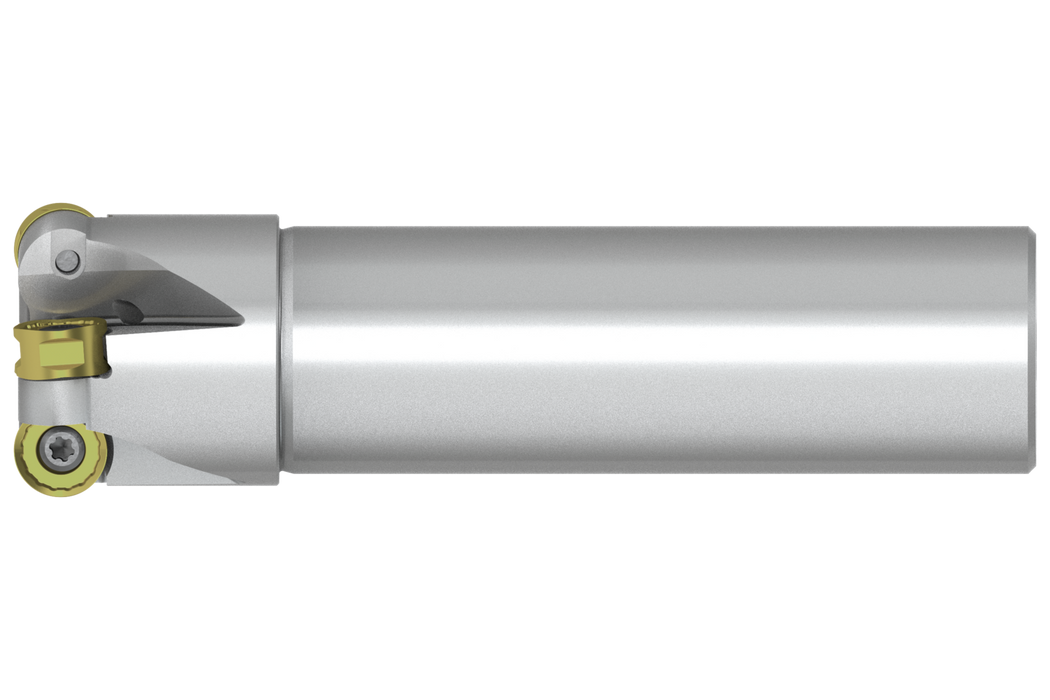

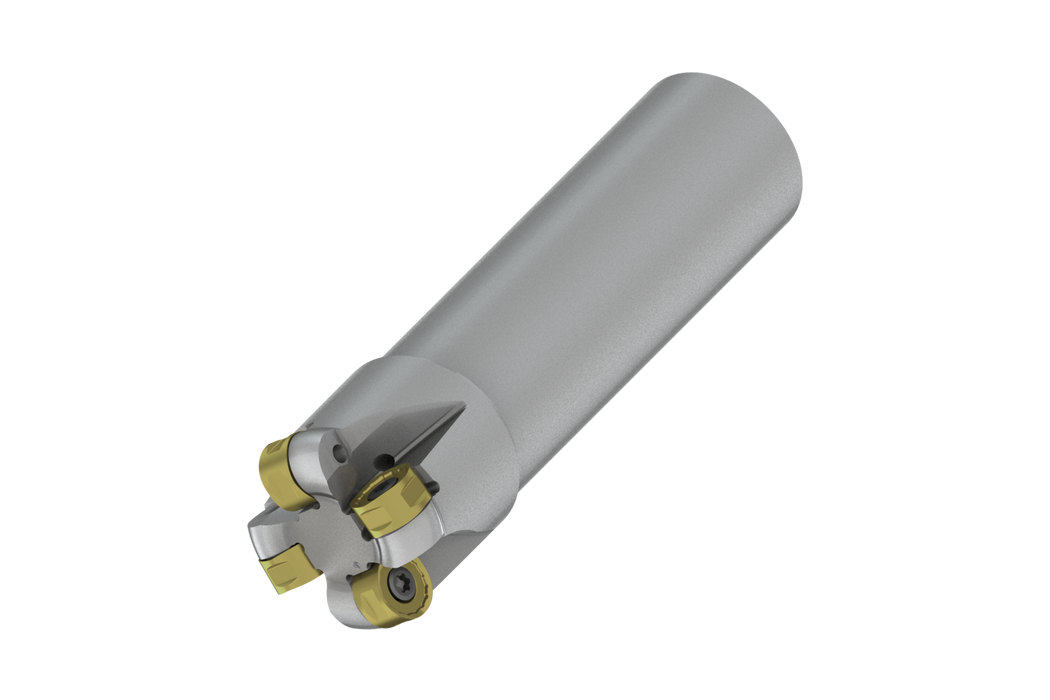

Copy face mill with double negative geometry which utilises 4 of RNMU 1205MOT.. double-sided inserts, cutting diameter 1.500'' with 1.250'' parallel shank according to DIN 1835A, 1.340'' functional and 5.157'' overall length, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of .236''

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$500.00 - $500.00
$500.00
$500.00 - $500.00
$500.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.028

Cutting Diameter - mm (DC): 26.1

Max Cut Diameter: 1.5

Overall Length (OAL): 5.157

Connetion Diameter: 0.492

Max. Depth of Cut: 0.236

Shank: Cylindrical shank DIN 1835A

Cutter Design: SRN12

Usable Length: 1.339

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8654381

EAN: 3603604459129

MFG Part Number: 8654381
