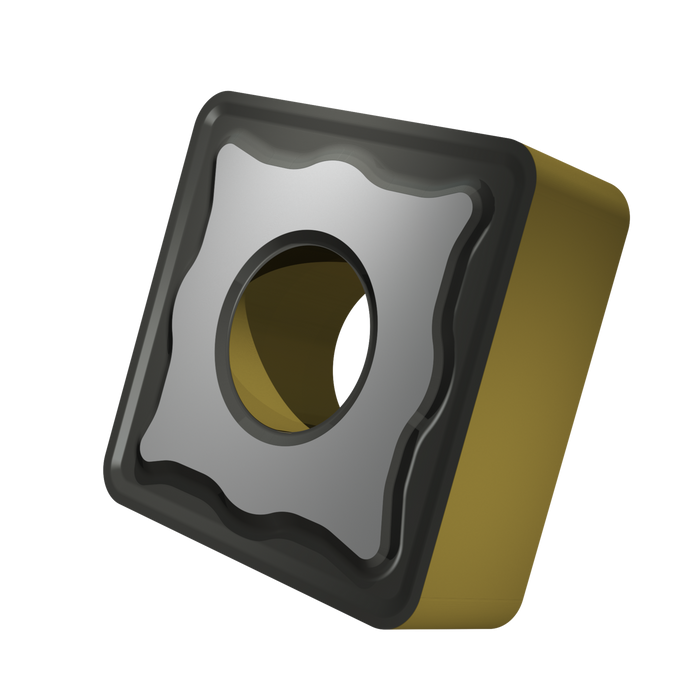

SNMG 120412E-KR:T5415

SNMG 120412E-KR:T5415

SKU DOR8716808
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, square with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker KR, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for medium to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.04 - $14.04
$14.04
$14.04 - $14.04
$14.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: SNMG

Insert Shape Code: S - square

Insert Thickness: 0.187

Steel and Cast Steel: Possible use

Cast Iron: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: KR

Grade: T5415

Corner Radius - in: 0.0472

Corner Radius - mm: 1.2

EDP: 8716808

EAN: 3603604495363

MFG Part Number: 8716808
