SNMM 190616E-NR2:T5415

SNMM 190616E-NR2:T5415

SKU DOR8716816
by Dormer Pramet
Possible Use:

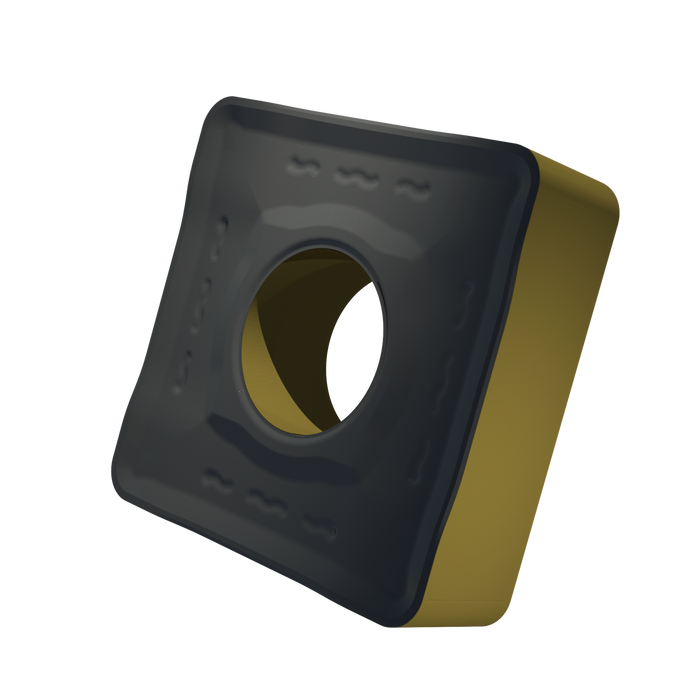

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NR2, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for medium to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$30.14 - $30.14
$30.14
$30.14 - $30.14
$30.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: SNMM

Insert Shape Code: S - square

Insert Thickness: 0.25

Steel and Cast Steel: Possible use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.75

Chip Breaker: NR2

Grade: T5415

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 8716816

EAN: 3603604495448

MFG Part Number: 8716816
