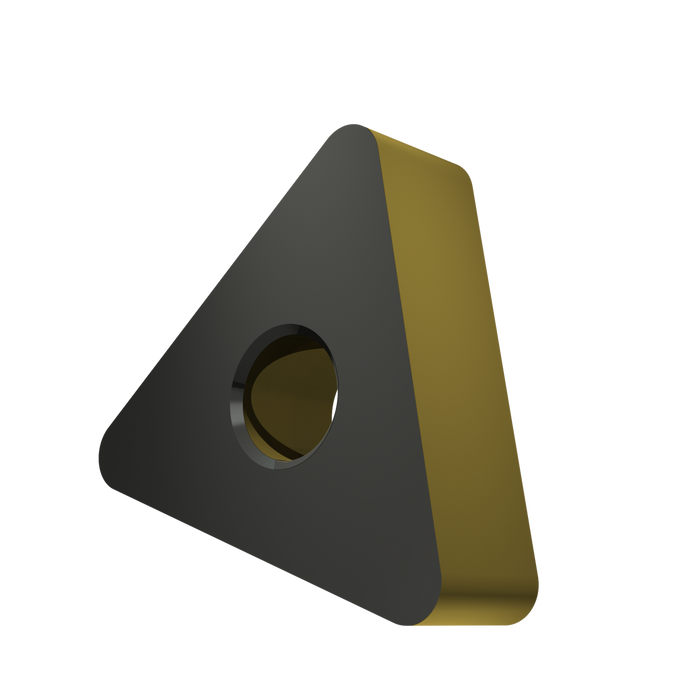

TNMA 160412:T5415

TNMA 160412:T5415

SKU DOR8716817
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/8", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for medium to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$11.97 - $11.97
$11.97
$11.97 - $11.97
$11.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: TNMA

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Cast Iron: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: T5415

Corner Radius - in: 0.0472

Corner Radius - mm: 1.2

EDP: 8716817

EAN: 3603604495455

MFG Part Number: 8716817
