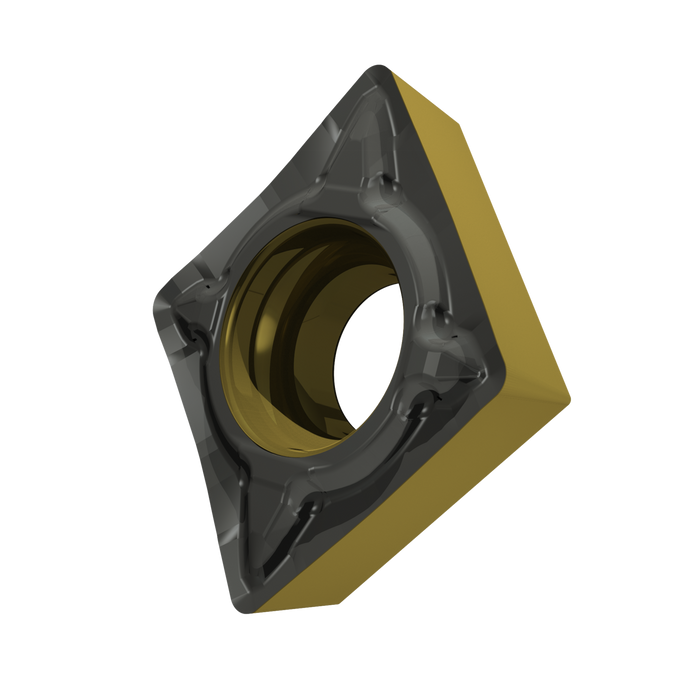

CCMT 060204E-UR:T5415

CCMT 060204E-UR:T5415

SKU DOR8717333
by Dormer Pramet
Primary Use: Possible Use:

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10 - K25, for fine to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.61 - $10.61
$10.61
$10.61 - $10.61
$10.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.094

Steel and Cast Steel: Possible use

Cast Iron: Primary use

Inscribed Circle Diameter: 0.25

Chip Breaker: UR

Grade: T5415

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 8717333

EAN: 3603604496032

MFG Part Number: 8717333
