CNMG 120404-KM:T5415

CNMG 120404-KM:T5415

SKU DOR8717546
by Dormer Pramet
Primary Use: Possible Use:

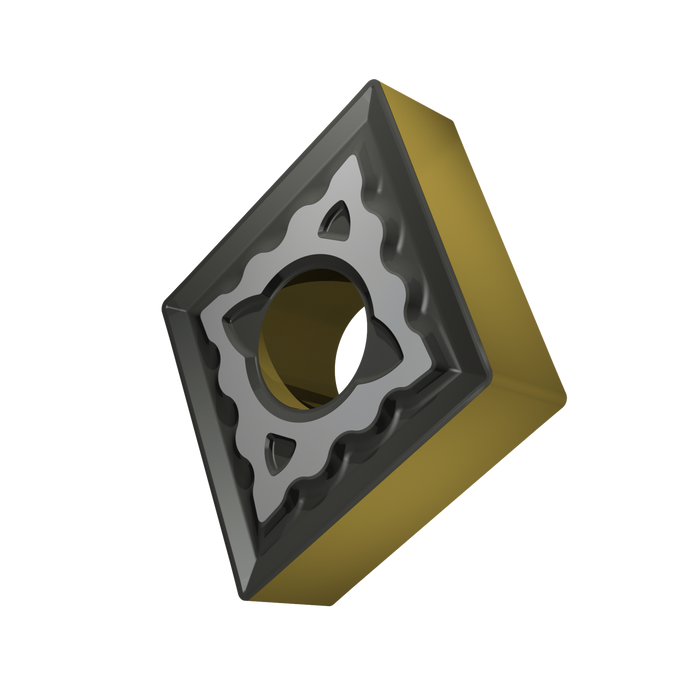

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 0.5 inch, 0.187 inch thick, 0.016 inch nose radius, indexing accuracy according to ISO-tolerance class-M. In grade T5415, a MT-CVD coated WC-Co carbide. KM chip breaker is versatile and the first choice for medium machining of cast irons. It features slightly positive rake angle and stable, wide T-land.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.43 - $14.43
$14.43
$14.43 - $14.43
$14.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Steel and Cast Steel: Possible use

Cast Iron: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: KM

Grade: T5415

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 8717546

EAN: 3603604496469

MFG Part Number: 8717546
