300A08R-ISMORN12-C

300A08R-ISMORN12-C

SKU DOR8747999
by Dormer Pramet
Primary Use:

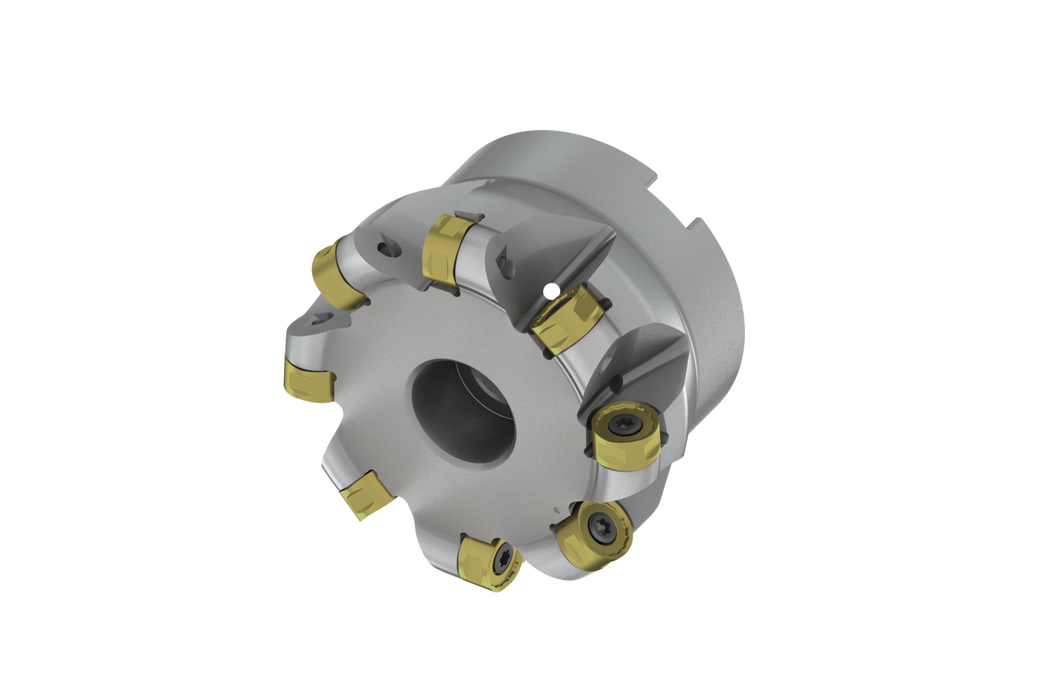

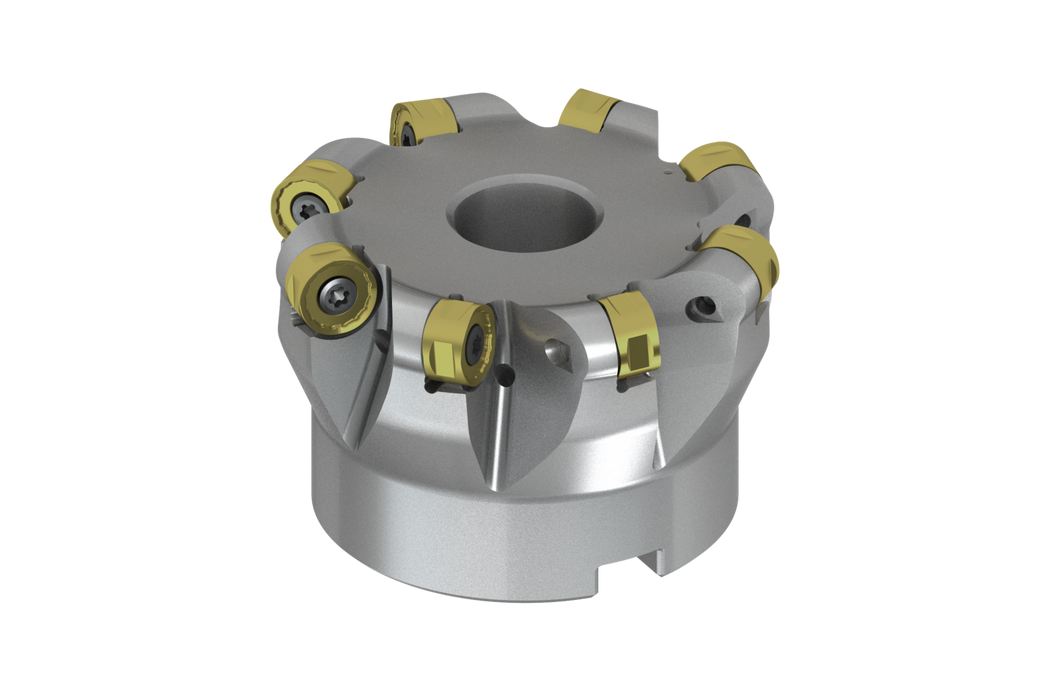

Copy face mill with double negative geometry which utilises 8 of RNMU 1205MOT.. double-sided inserts, cutting diameter 3.000'' with 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for face milling, copy milling and progressive plunge milling with a maximum depth of cut of .236''

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$801.00 - $801.00
$801.00
$801.00 - $801.00
$801.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 2.528

Cutting Diameter - mm (DC): 64.2

Max Cut Diameter: 3.0

Connetion Diameter: 0.492

Max. Depth of Cut: 0.236

Shank: Shell mill DIN 8030 A

Cutter Design: SRN12

Functional Length: 1.969

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

EDP: 8747999

EAN: 3603604518031

MFG Part Number: 8747999
