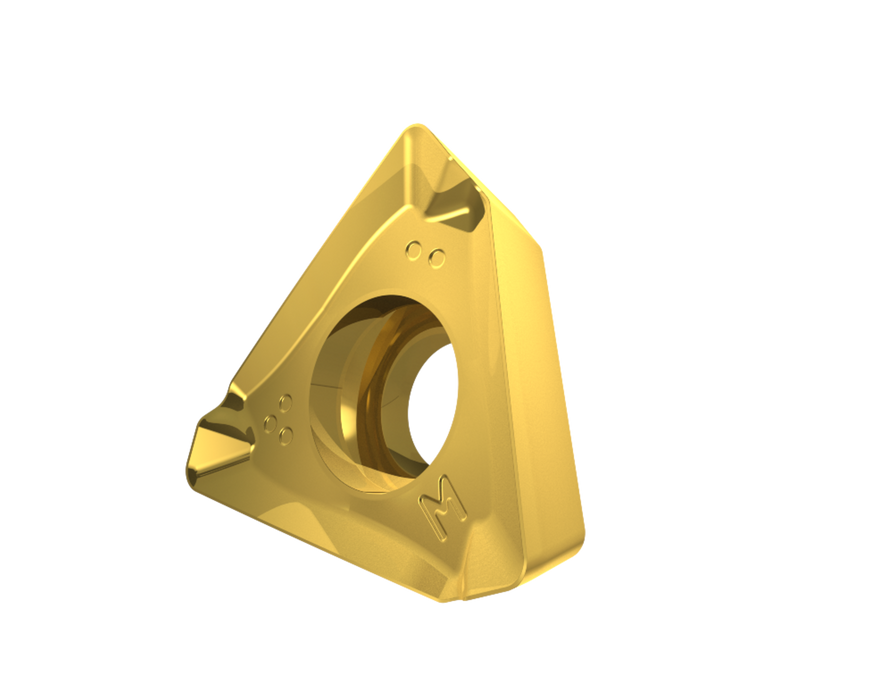

TDET 170408SR-M:M8330

TDET 170408SR-M:M8330

SKU DOR8782285
by Dormer Pramet
Primary Use: Possible Use:

Single-sided triangular milling insert TDET 1704, for a maximum depth of cut of .433'', with .032'' corner radius, an indexing accuracy according to ISO-tolerance class-E and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron with shoulder mills STD17/ISTD17

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.50 - $16.50
$16.50
$16.50 - $16.50
$16.50
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: TDET

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Cutter Design: STD17

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

High Temp Alloys: Possible use

Inscribed Circle Diameter: 0.406

Chip Breaker: M

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8782285

EAN: 3603604536189

MFG Part Number: 8782285
