TDET 170408SR-MM:M8345

TDET 170408SR-MM:M8345

SKU DOR8782306
by Dormer Pramet
Primary Use:

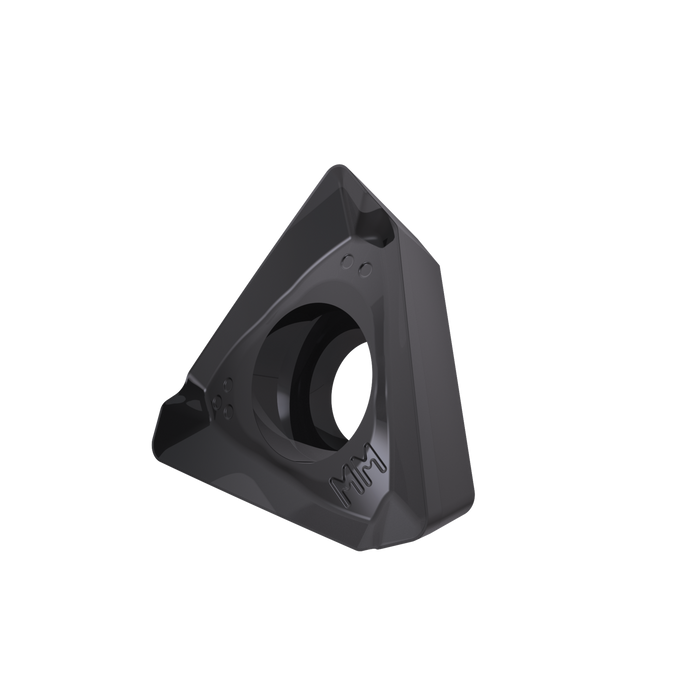

Single-sided triangular milling insert TDET 1704, for a maximum depth of cut of .433'', with .032'' corner radius, an indexing accuracy according to ISO-tolerance class-E and MM geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50/M30-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with shoulder mills STD17/ISTD17

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.46 - $16.46
$16.46
$16.46 - $16.46
$16.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: TDET

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Cutter Design: STD17

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

Inscribed Circle Diameter: 0.406

Chip Breaker: MM

Grade: M8345

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8782306

EAN: 3603604536295

MFG Part Number: 8782306
