50A05R-S90TD17D-C

50A05R-S90TD17D-C

SKU DOR8782494
by Dormer Pramet
Primary Use:

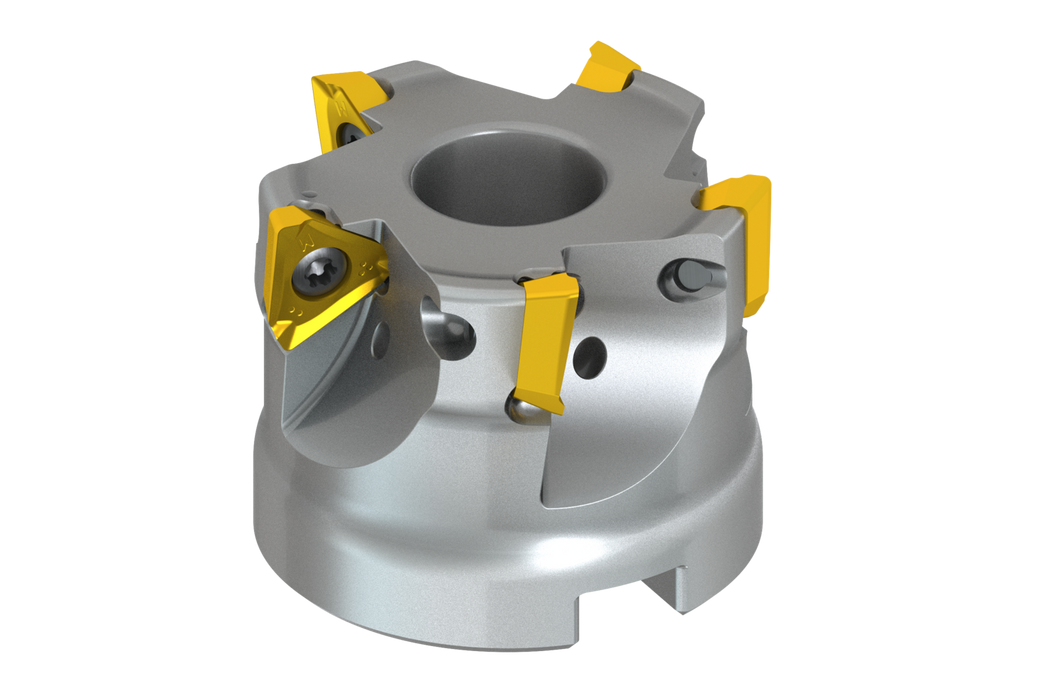

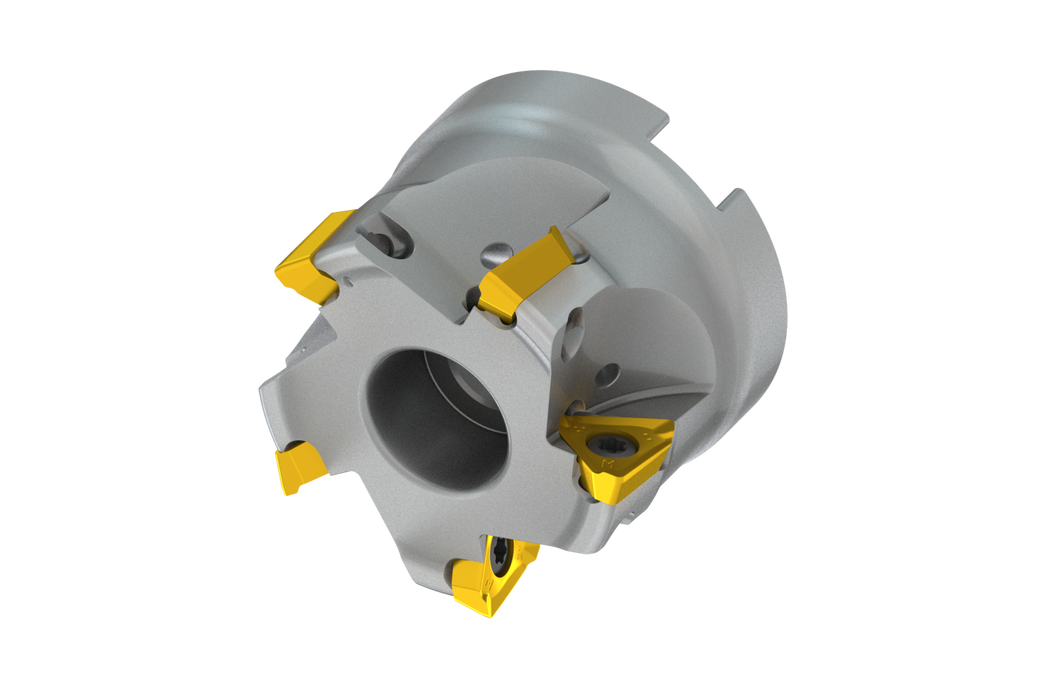

Shoulder mill with positve/negative geometry which utilises 5 of TDMT 1704.. or TDET 1704.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 11.0mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$536.00 - $536.00
$536.00
$536.00 - $536.00
$536.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Connetion Diameter: 0.492

Max. Depth of Cut: 0.433

Insert Design: TDET17

Shank: Shell mill DIN 8030 A

Cutter Design: STD17

Functional Length: 1.575

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

Hardened Material: Primary use

EDP: 8782494

EAN: 3603604536561

MFG Part Number: 8782494
