RC3051.0

RC3051.0

SKU DOR8903887
by Dormer Pramet
Primary Use: Possible Use:

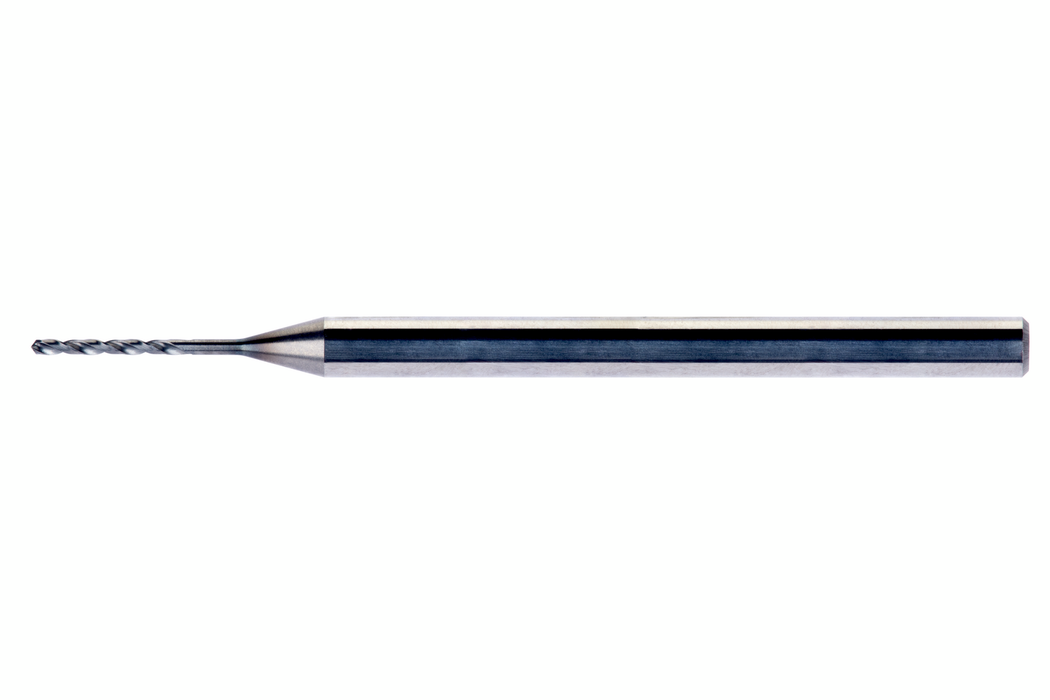

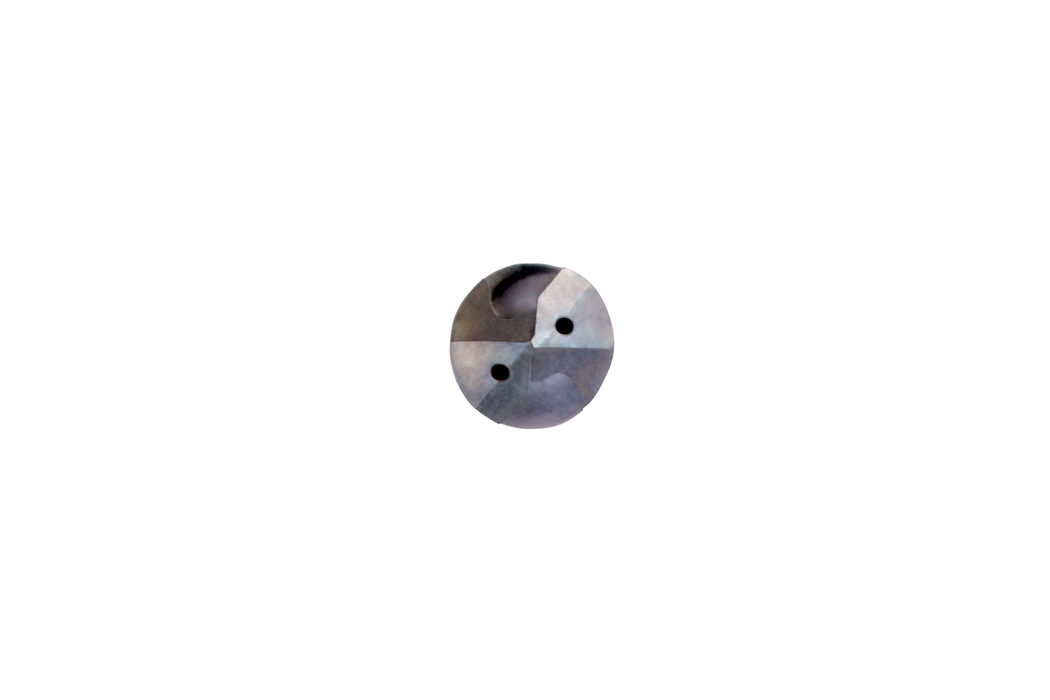

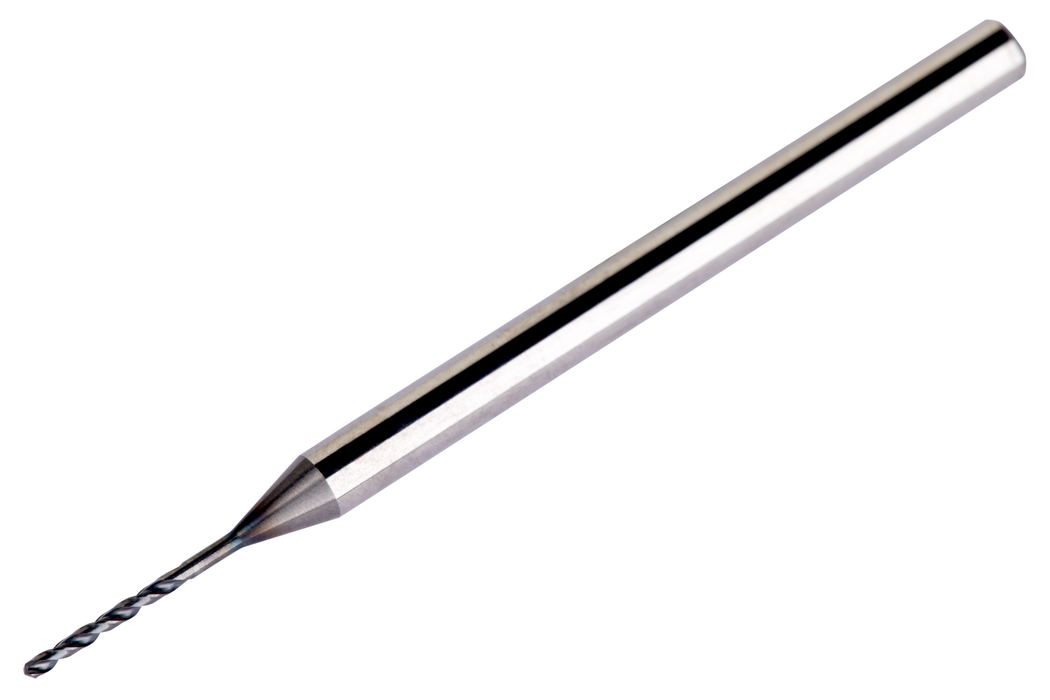

Cutting diameter 1 mm high-performance micro drill designed for precision applications, featuring a 140° point angle and capable of drilling up to 5xD with excellent surface quality. DCON MS 3 mm, LCF 9 mm and OAL 50 mm. Internal coolant enhances chip evacuation, while the advanced AlCrN coating provides outstanding wear resistance, thermal stability, and process reliability.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$166.57 - $166.57
$166.57
$166.57 - $166.57
$166.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: AlCrN

Cutting Diameter - in (DC): 0.039

Cutting Diameter - mm (DC): 1.0

Drill Point Angle - deg: 140

Flute Length: 0.354

Overall Length (OAL): 1.969

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 0.295

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Possible use

EDP: 8903887

EAN: 3603607350379

MFG Part Number: 8903887
