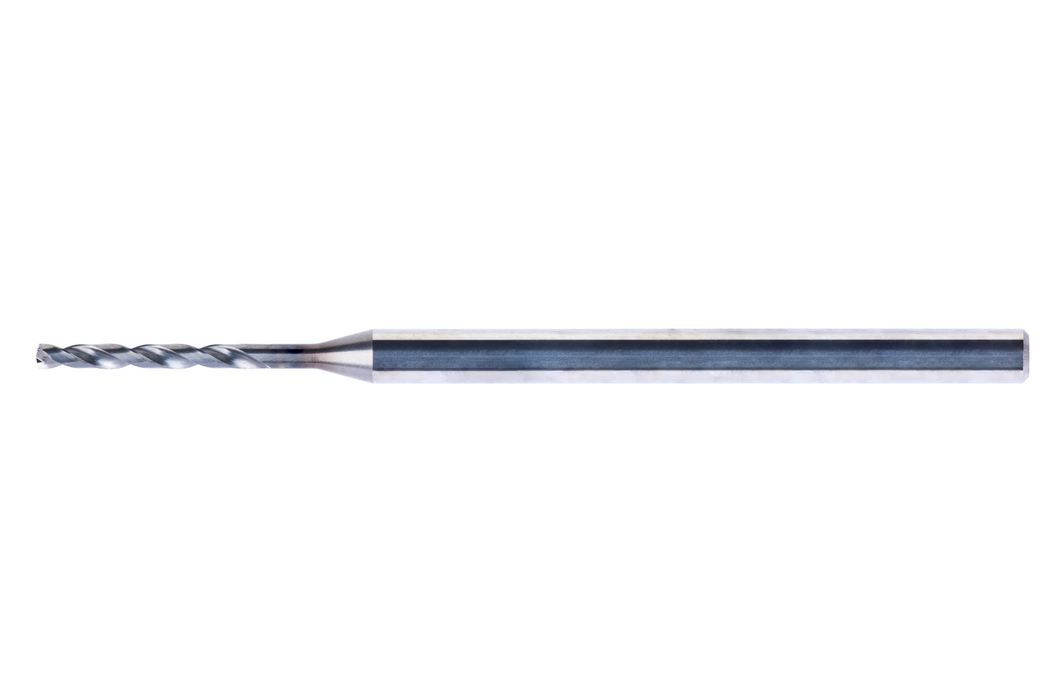

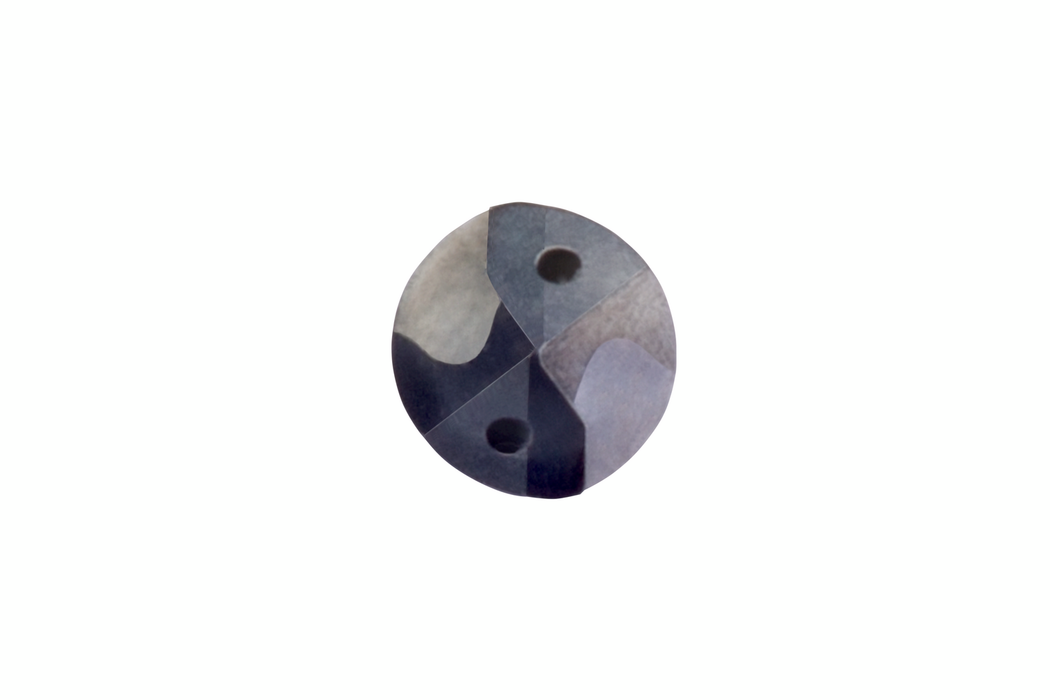

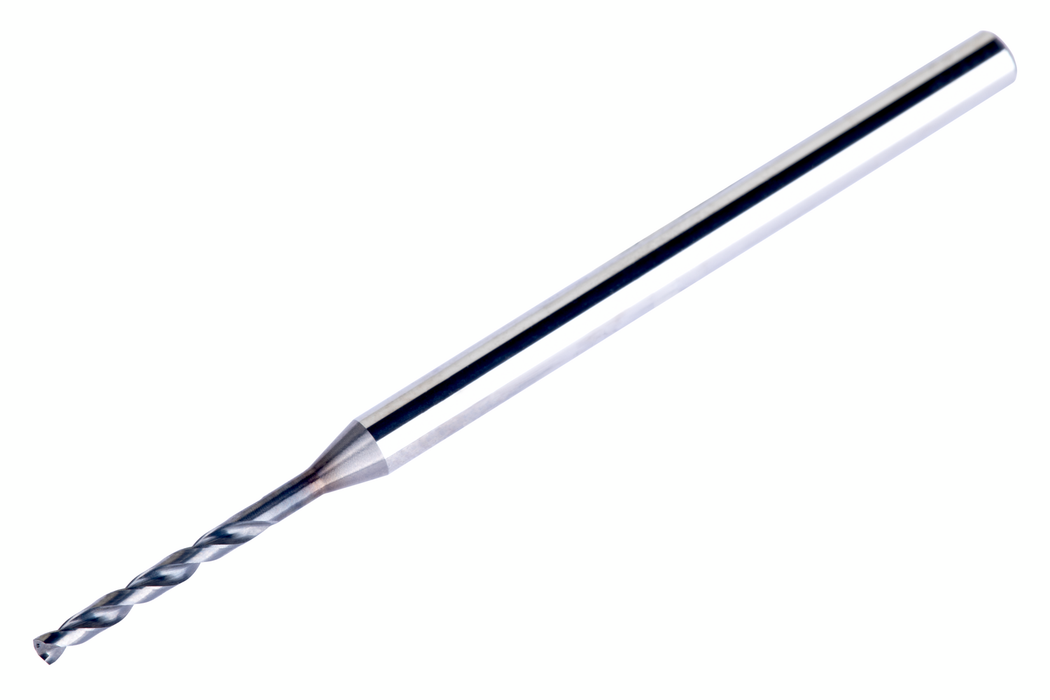

RC3053/64

RC3053/64

SKU DOR8903891
by Dormer Pramet
Primary Use: Possible Use:

Cutting diameter 3/64 inches high-performance micro drill designed for precision applications, featuring a 140° point angle and capable of drilling up to 5xD with excellent surface quality. DCON MS 3 mm, LCF 10 mm and OAL 51 mm. Internal coolant enhances chip evacuation, while the advanced AlCrN coating provides outstanding wear resistance, thermal stability, and process reliability.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$166.57 - $166.57
$166.57
$166.57 - $166.57
$166.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: AlCrN

Cutting Diameter - in (DC): 0.047

Cutting Diameter - mm (DC): 1.191

Drill Point Angle - deg: 140

Flute Length: 0.394

Overall Length (OAL): 2.008

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 0.315

Fractional: 3/64

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Possible use

EDP: 8903891

EAN: 3603607350416

MFG Part Number: 8903891
