RC4169/32
RC4169/32
RC4169/32

RC4169/32

SKU DOR8904118
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$582.21 CAD - $582.21 CAD
$582.21 CAD
$582.21 CAD - $582.21 CAD
$582.21 CAD

Sold in packs of: 1

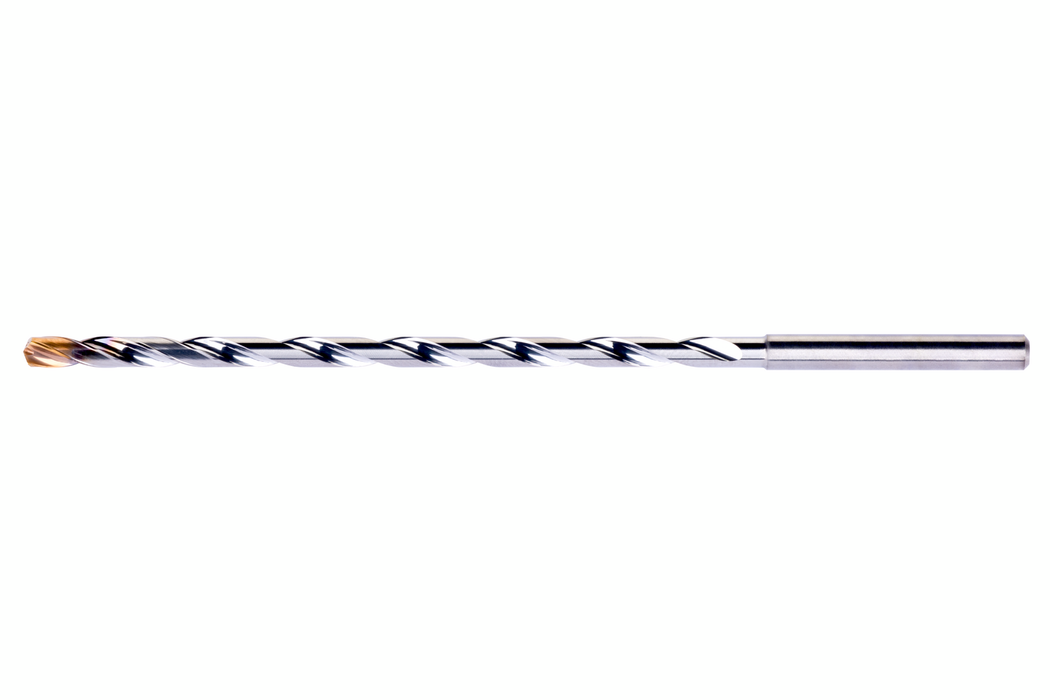

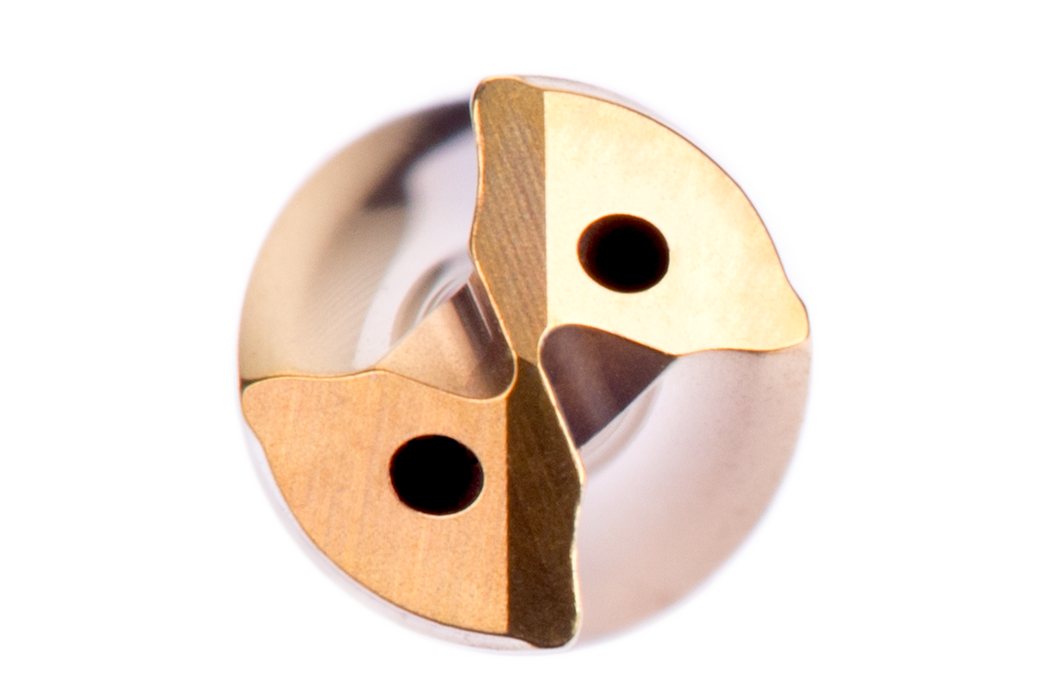

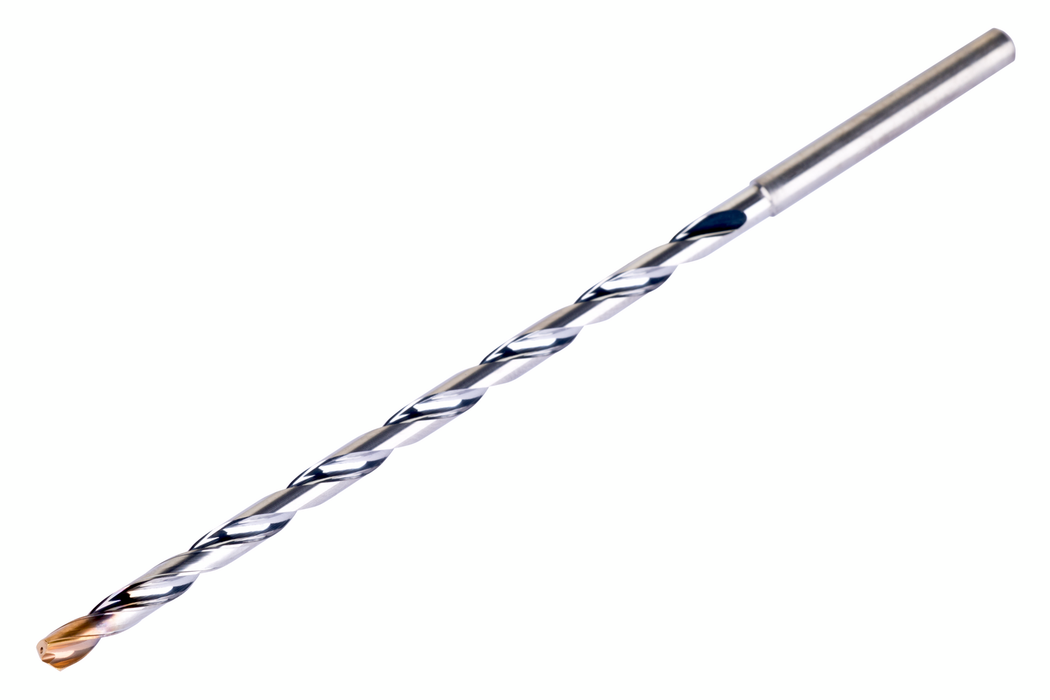

Cutting diameter 9/32 inches high-performance deep hole drill featuring a 140° point angle and optimized thinner web design, enabling drilling up to 16xD without pecking. DCON MS 8 mm, LCF 152 mm and OAL 192 mm. Nano-Tip multilayer coating delivers superior thermal stability and wear resistance for extended tool life. Internal coolant channels provide enhanced cooling efficiency.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4169/32
Product Number8904118
Product FamilyRC416
Dimensions
Cutting Diameter — in (DC)0.281"
Cutting Diameter — mm (DC)7.14 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)7.559"
Overall Length — mm (OAL)192.0 mm
Flute Length — in (LCF)5.984"
Flute Length — mm (LCF)152.0 mm
Functional Length — in (LF)5.512"
Functional Length — mm (LF)140.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904118
EAN3603607352274
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
File Type Download
RC4169/32 — 3D Model STP Download
RC4169/32 — 2D Model DXF Download
RC4169/32 — Line Drawing PDF Download
