RC4209.8

RC4209.8

SKU DOR8904174
by Dormer Pramet
Primary Use:

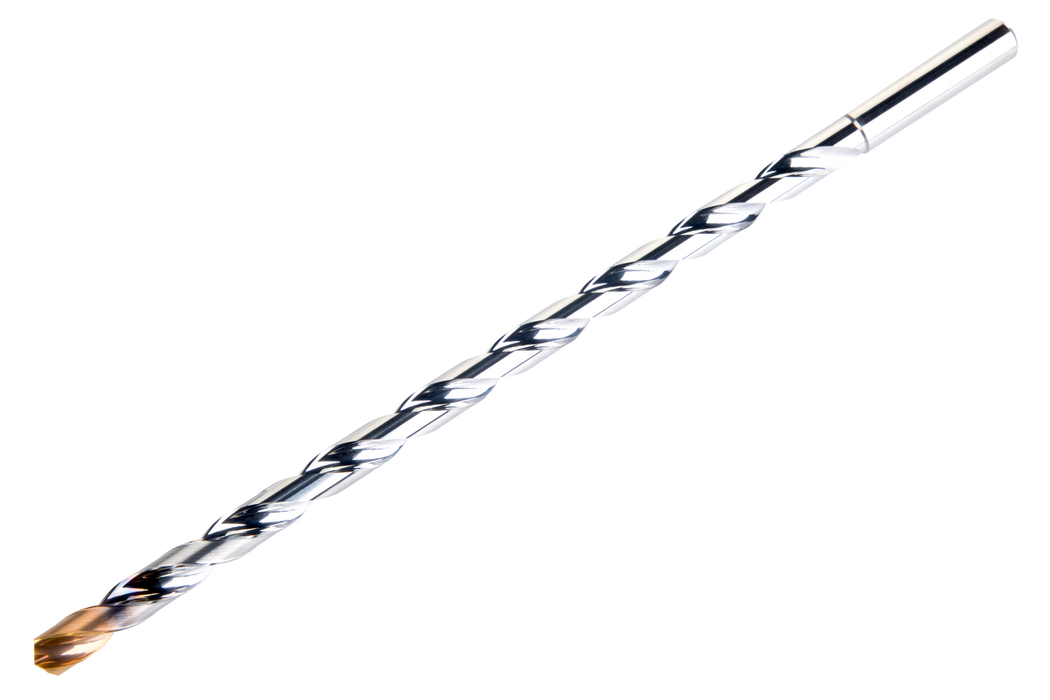

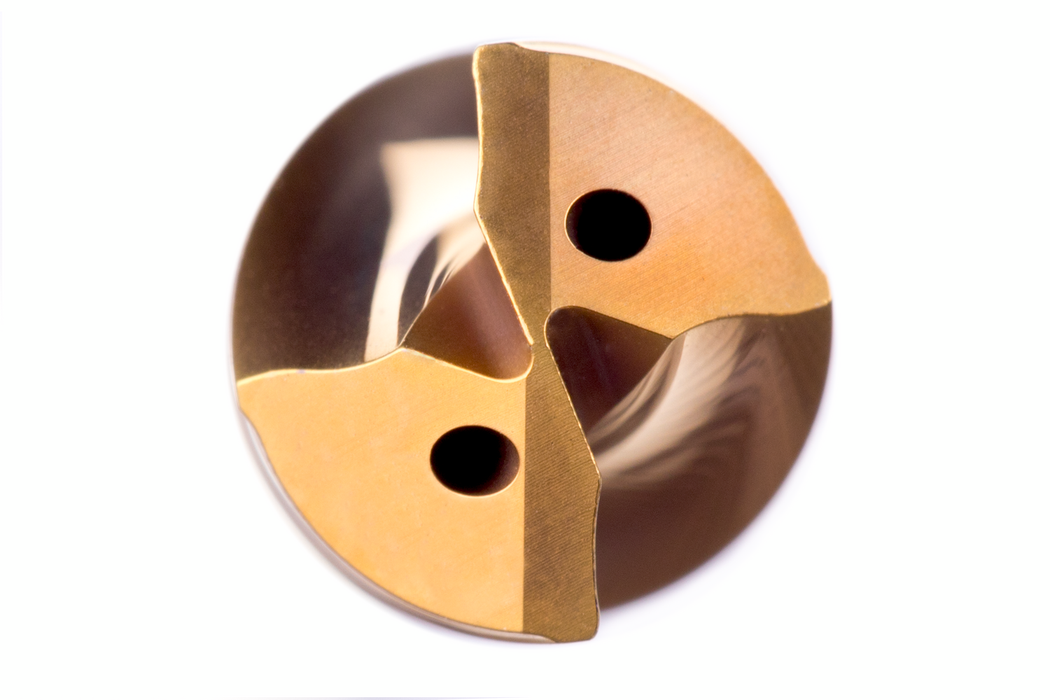

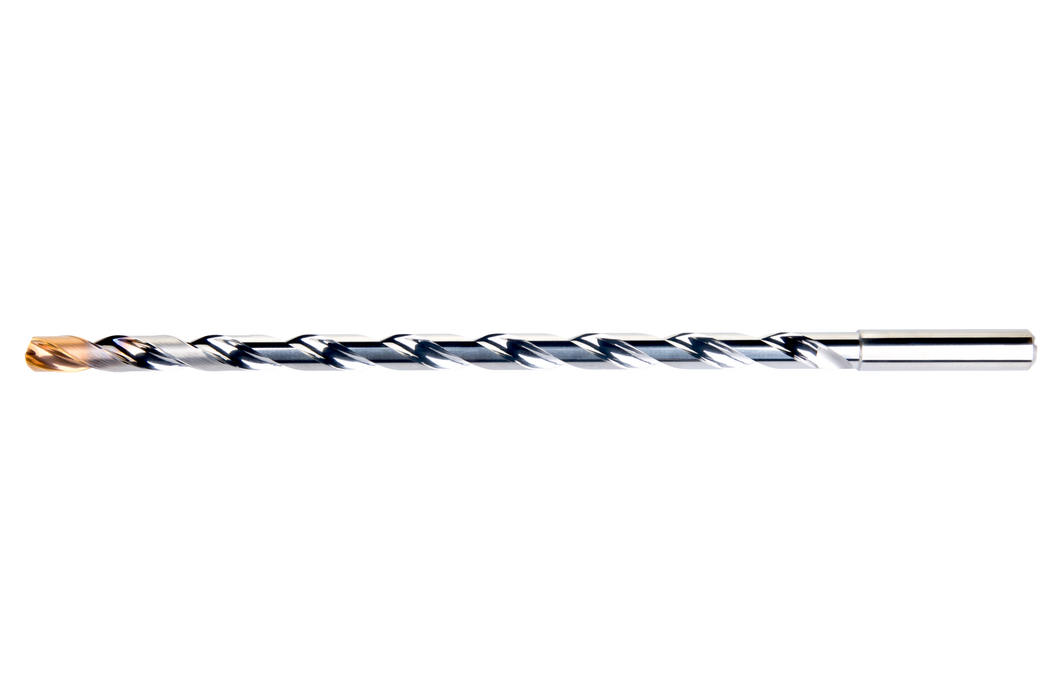

Cutting diameter 9.8 mm high-performance deep hole drill featuring a 140° point angle and optimized thinner web design, enabling drilling up to 20xD without pecking. DCON MS 10 mm, LCF 220 mm and OAL 262 mm. Nano-Tip multilayer coating delivers superior thermal stability and wear resistance for extended tool life. Internal coolant channels provide enhanced cooling efficiency.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$608.93 - $608.93
$608.93
$608.93 - $608.93
$608.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: Nano-Tip

Cutting Diameter - in (DC): 0.386

Cutting Diameter - mm (DC): 9.8

Drill Point Angle - deg: 140

Flute Length: 8.661

Overall Length (OAL): 10.315

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 8.071

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

EDP: 8904174

EAN: 3603607352830

MFG Part Number: 8904174
