RC4P8.5

RC4P8.5

SKU DOR8904215
by Dormer Pramet
Primary Use:

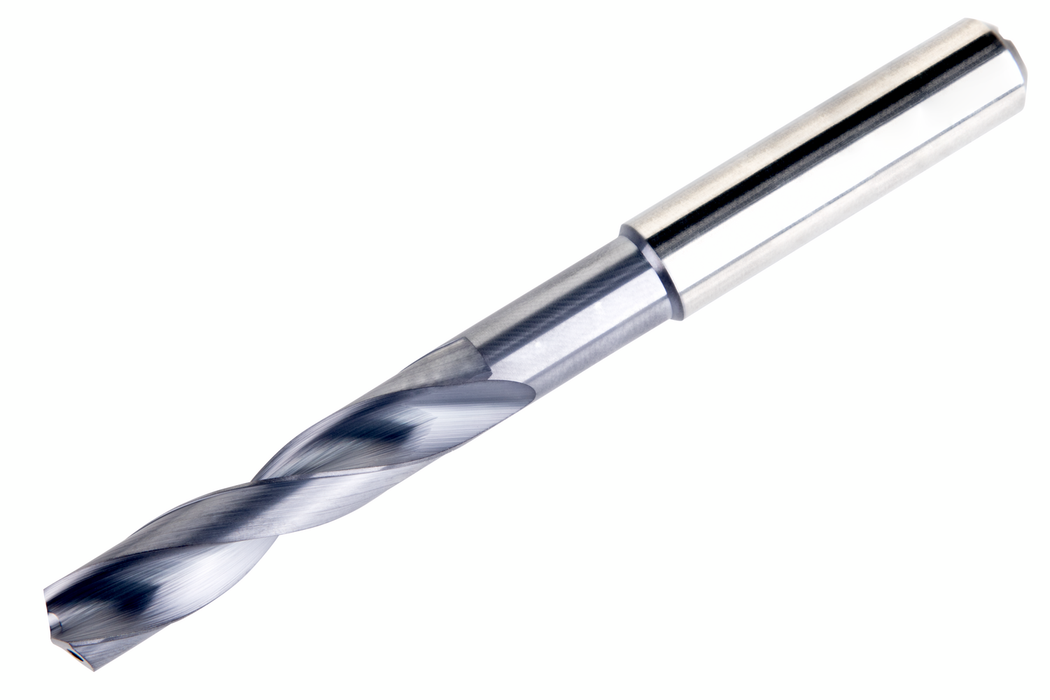

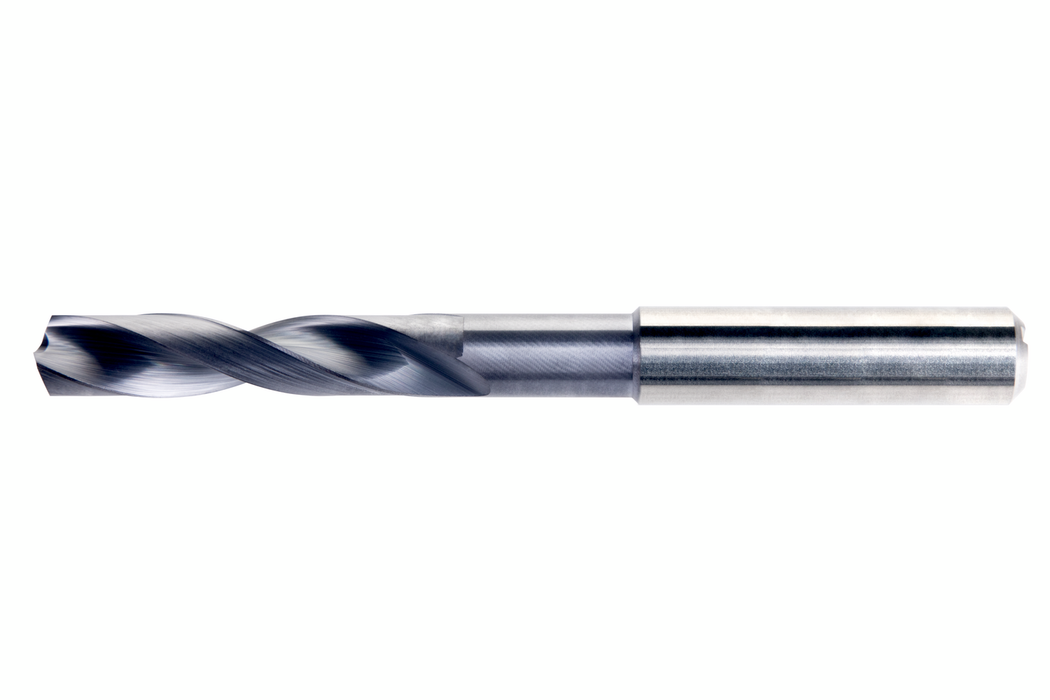

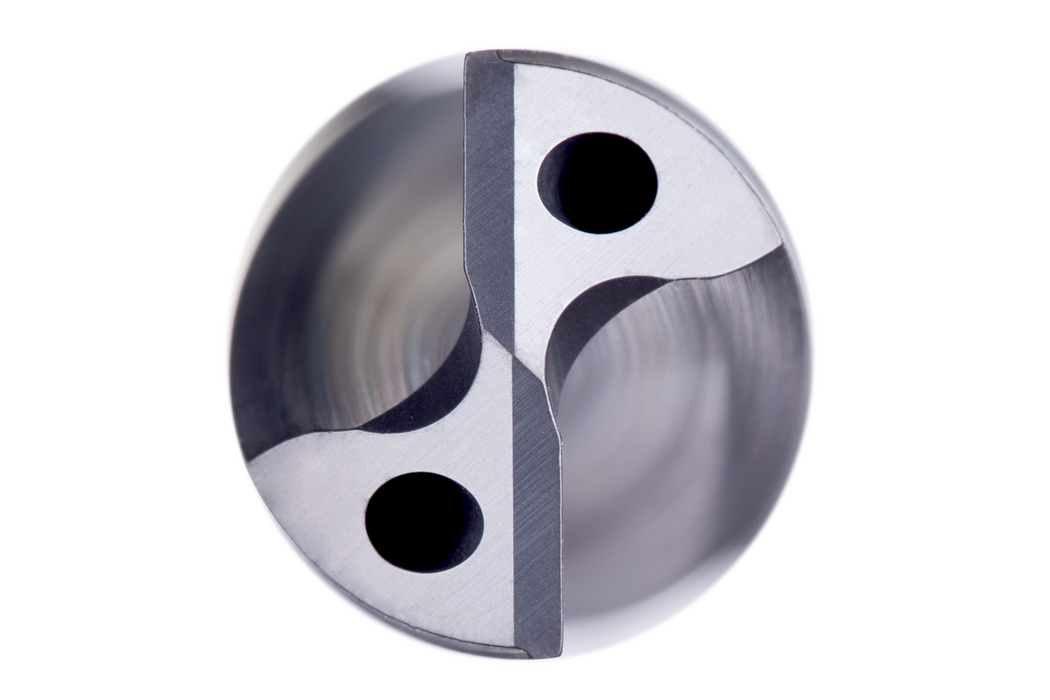

Cutting diameter 8.5 mm specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. DCON MS 10 mm, LCF 47 mm and OAL 103 mm. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$227.86 - $227.86
$227.86
$227.86 - $227.86
$227.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: Multi TiAlN

Cutting Diameter - in (DC): 0.335

Cutting Diameter - mm (DC): 8.5

Drill Point Angle - deg: 150

Flute Length: 1.85

Overall Length (OAL): 4.055

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 1.26

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

EDP: 8904215

EAN: 3603607353240

MFG Part Number: 8904215
