RC4P13/32

RC4P13/32

SKU DOR8904222
by Dormer Pramet
Primary Use:

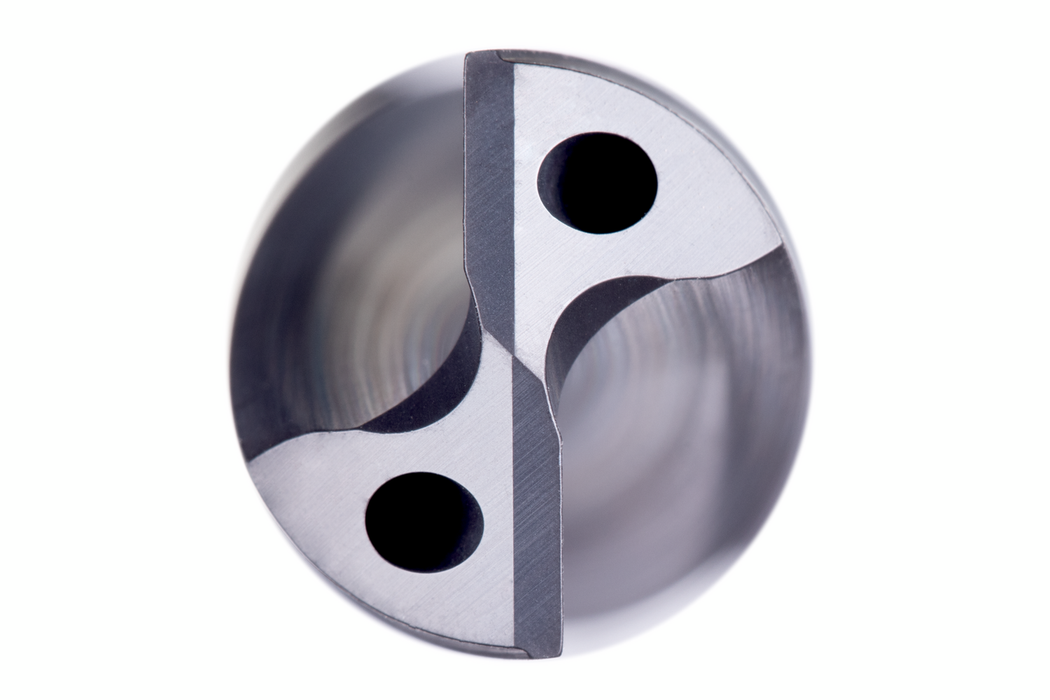

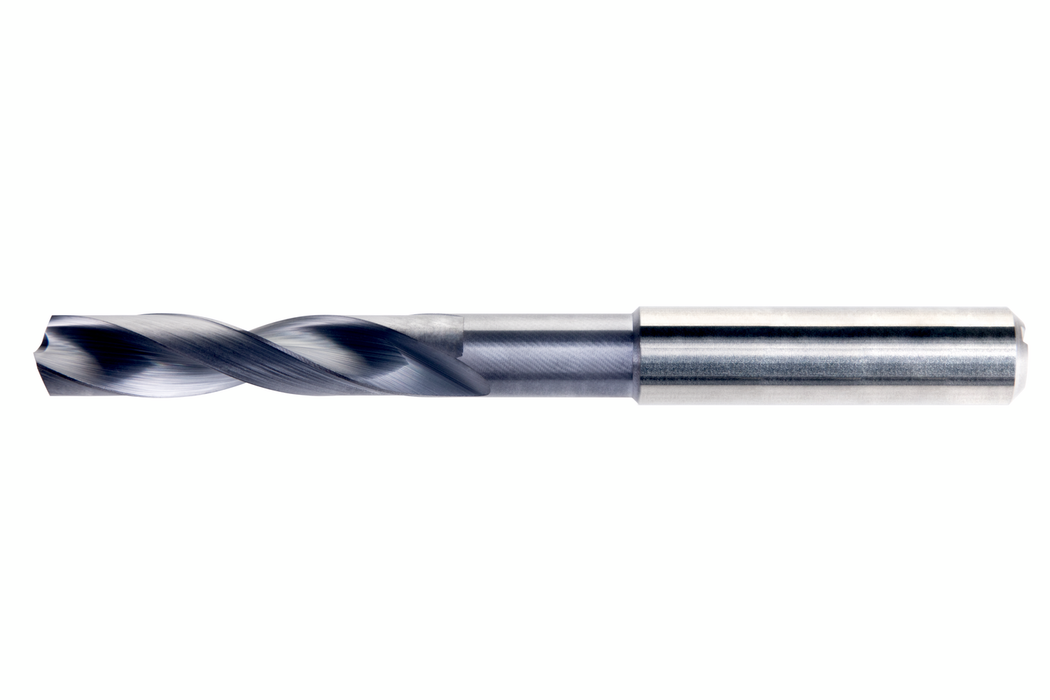

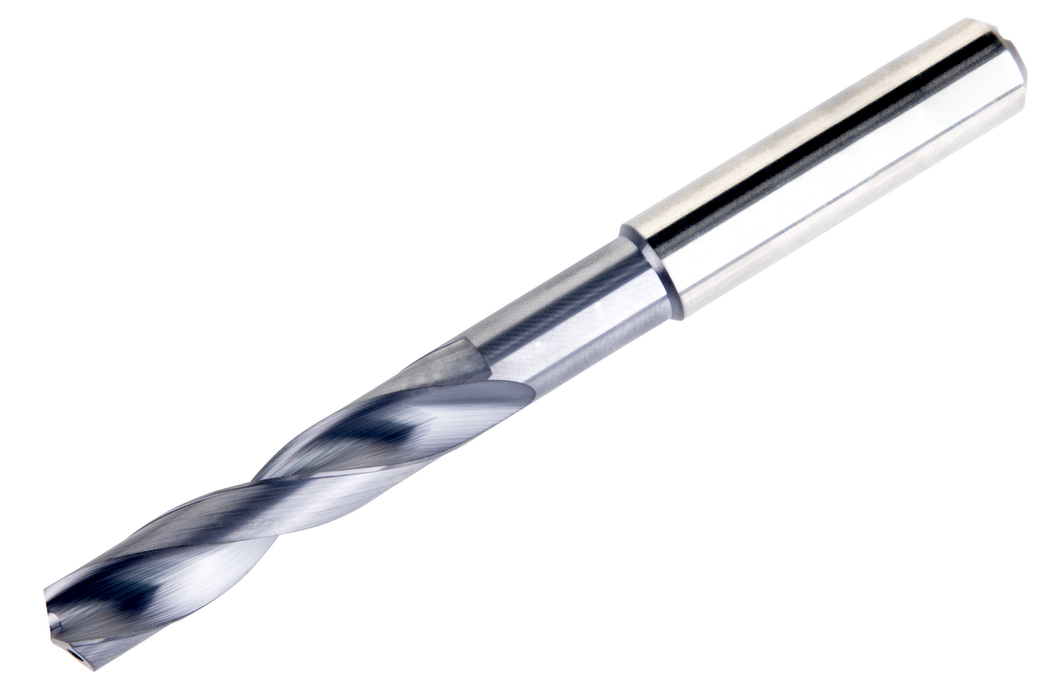

Cutting diameter 13/32 inches specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. DCON MS 12 mm, LCF 55 mm and OAL 118 mm. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$308.79 - $308.79
$308.79
$308.79 - $308.79
$308.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: Multi TiAlN

Cutting Diameter - in (DC): 0.406

Cutting Diameter - mm (DC): 10.319

Drill Point Angle - deg: 150

Flute Length: 2.165

Overall Length (OAL): 4.646

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 1.457

Fractional: 13/32

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

EDP: 8904222

EAN: 3603607353318

MFG Part Number: 8904222
