RC4P13.0

RC4P13.0

SKU DOR8904230
by Dormer Pramet
Primary Use:

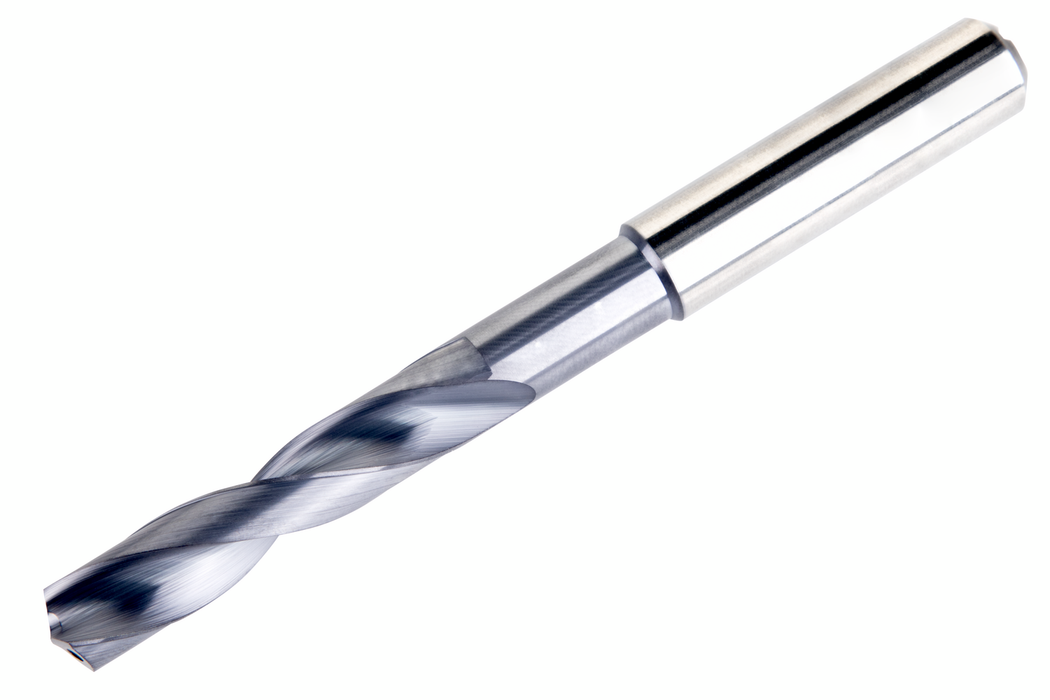

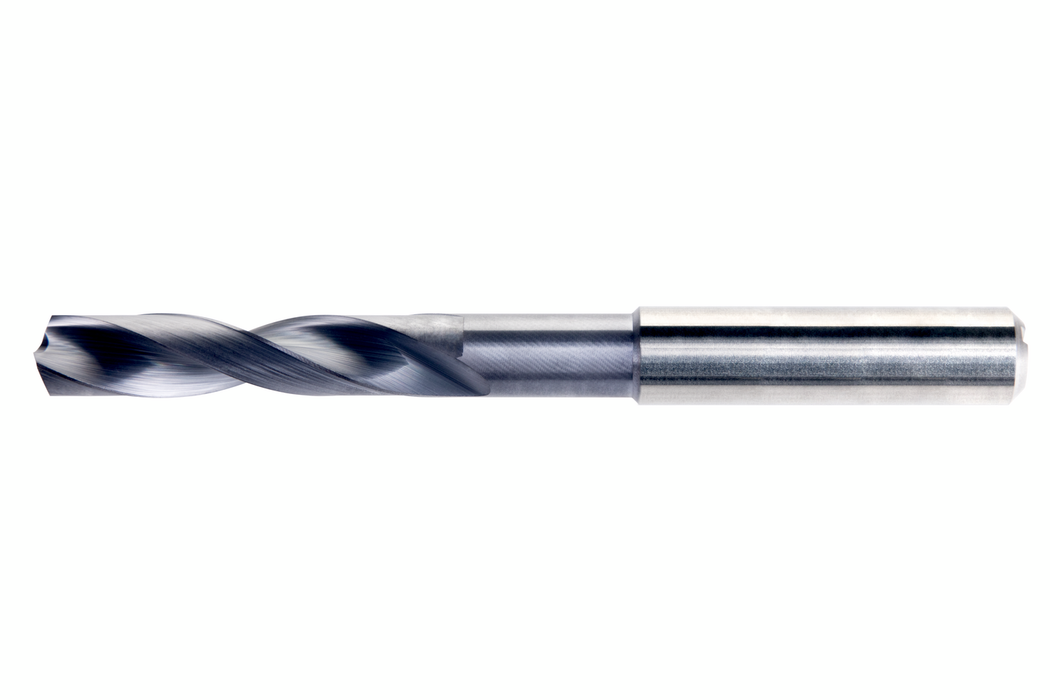

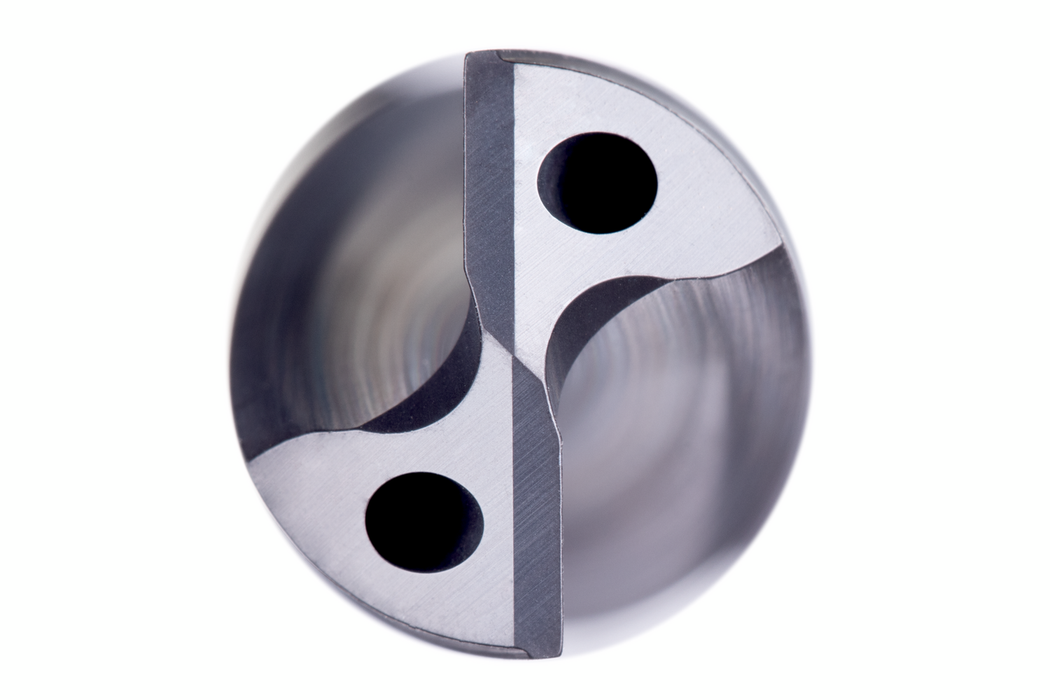

Cutting diameter 13 mm specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. DCON MS 14 mm, LCF 60 mm and OAL 124 mm. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$419.57 - $419.57
$419.57
$419.57 - $419.57
$419.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: Multi TiAlN

Cutting Diameter - in (DC): 0.512

Cutting Diameter - mm (DC): 13.0

Drill Point Angle - deg: 150

Flute Length: 2.362

Overall Length (OAL): 4.882

Connetion Diameter: 0.492

Shank: Cylindrical shank DIN 6535 HA

Functional Length: 1.811

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Primary use

High Temp Alloys: Primary use

EDP: 8904230

EAN: 3603607353394

MFG Part Number: 8904230
