A16R-SCLCR 09

A16R-SCLCR 09

SKU DOR8922976
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.00 - $209.00
$209.00
$209.00 - $209.00
$209.00

Sold in packs of: 1

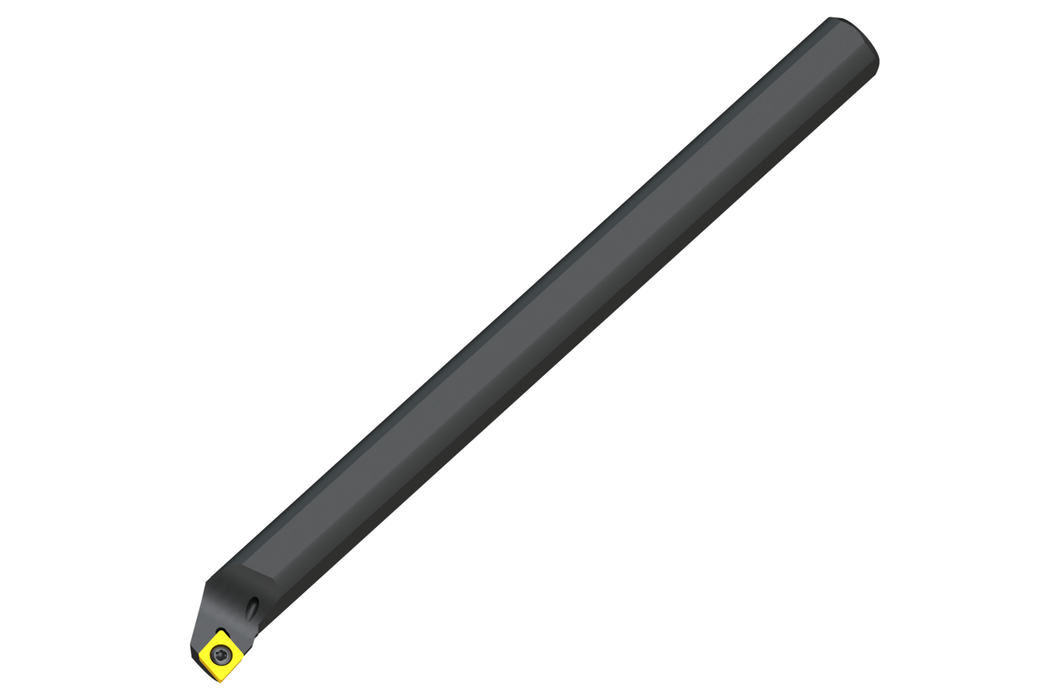

A16R-SCLCR 09 Internal turning tool. Steel body. Boring operations. Longitudinal turning. Side and end cutting capability. Suitable for machining with and without shoulder. For general internal machining applications.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-SCLCR 09
Product Number8922976
Product FamilySCLC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

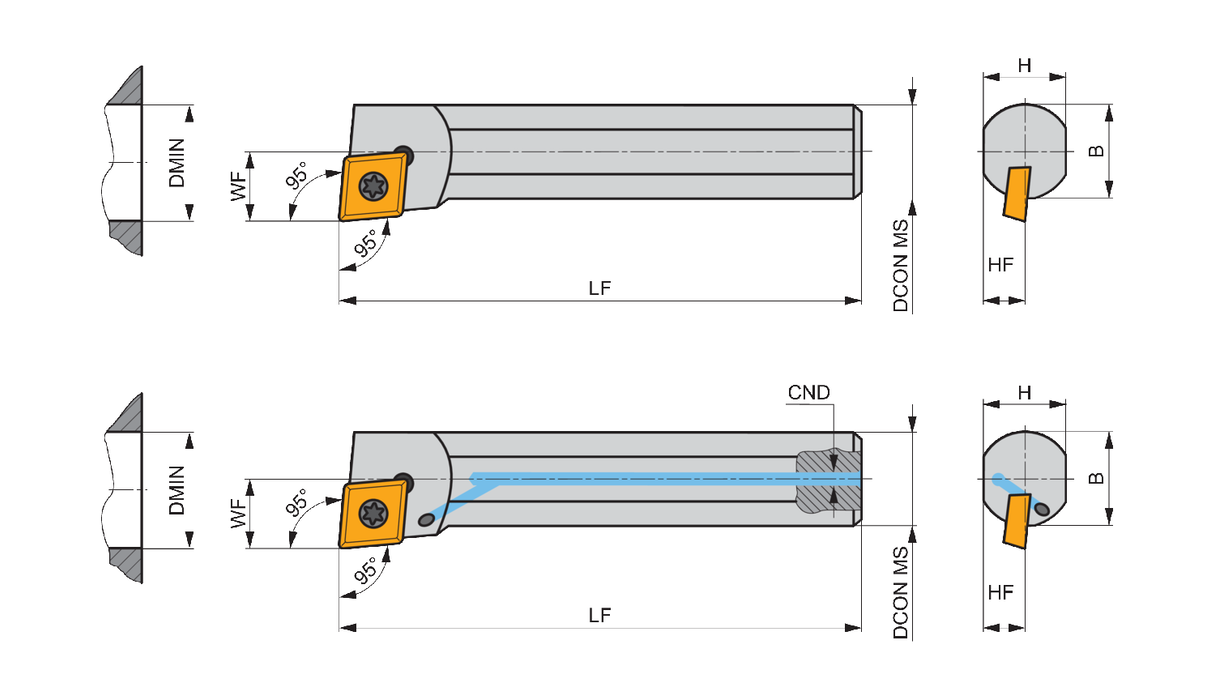

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)15.0 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Tool DesignCC
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number8922976
EAN3603604720175
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
A16R-SCLCR 09 — 3D Model STP Download
A16R-SCLCR 09 — 2D Model DXF Download
A16R-SCLCR 09 — Line Drawing PDF Download
