A16R-STFCR 11-A

A16R-STFCR 11-A

SKU DOR8998327
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.00 - $209.00
$209.00
$209.00 - $209.00
$209.00

Sold in packs of: 1

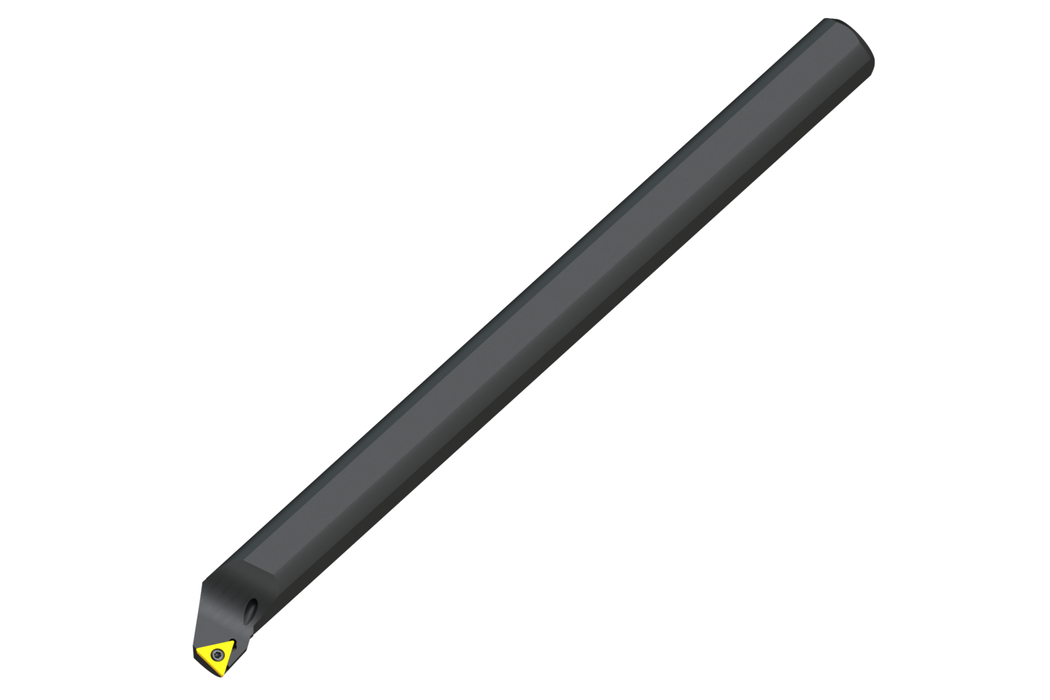

A16R-STFCR 11-A Internal turning tool. Steel body. Boring operations. Longitudinal turning. Side and end cutting capability. Suitable for machining with and without shoulder. For general internal machining applications.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-STFCR 11-A
Product Number8998327
Product FamilySTFC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)91°

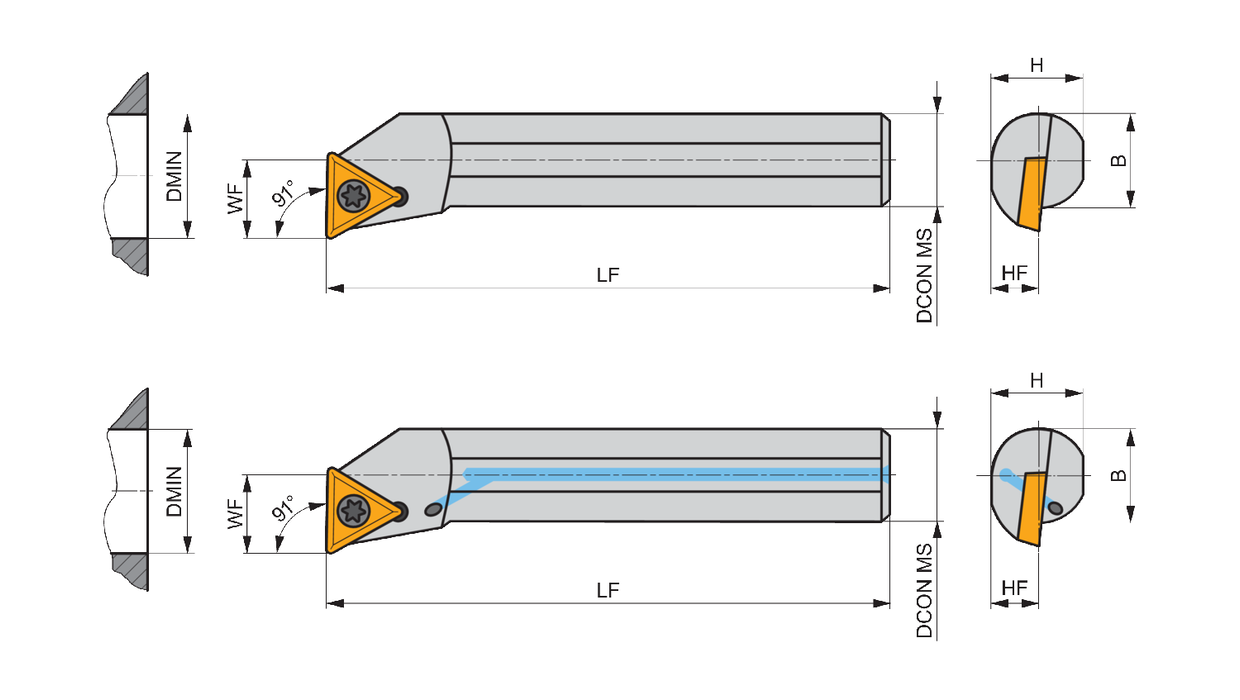

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)15.0 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Tool DesignTC
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number8998327
EAN3603604794091
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
A16R-STFCR 11-A — 3D Model STP Download
A16R-STFCR 11-A — 2D Model DXF Download
A16R-STFCR 11-A — Line Drawing PDF Download
