A25T-SCLCR 09

A25T-SCLCR 09

SKU DOR9003069
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 - $295.00
$295.00
$295.00 - $295.00
$295.00

Sold in packs of: 1

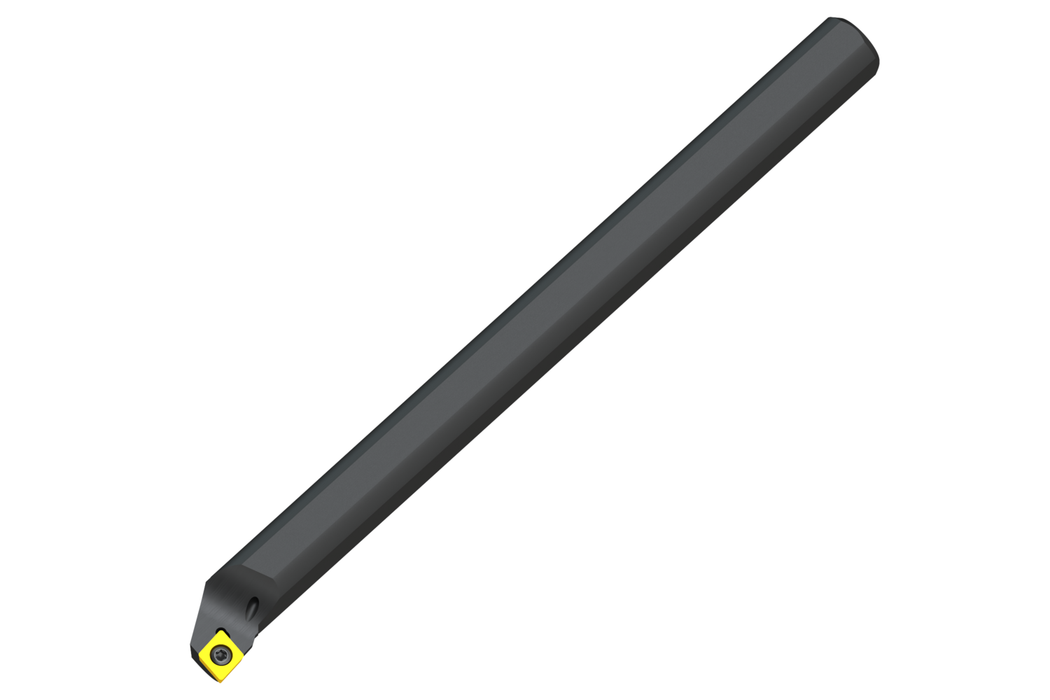

A25T-SCLCR 09 Internal turning tool. Steel body. Boring operations. Longitudinal turning. Side and end cutting capability. Suitable for machining with and without shoulder. For general internal machining applications.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SCLCR 09
Product Number9003069
Product FamilySCLC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

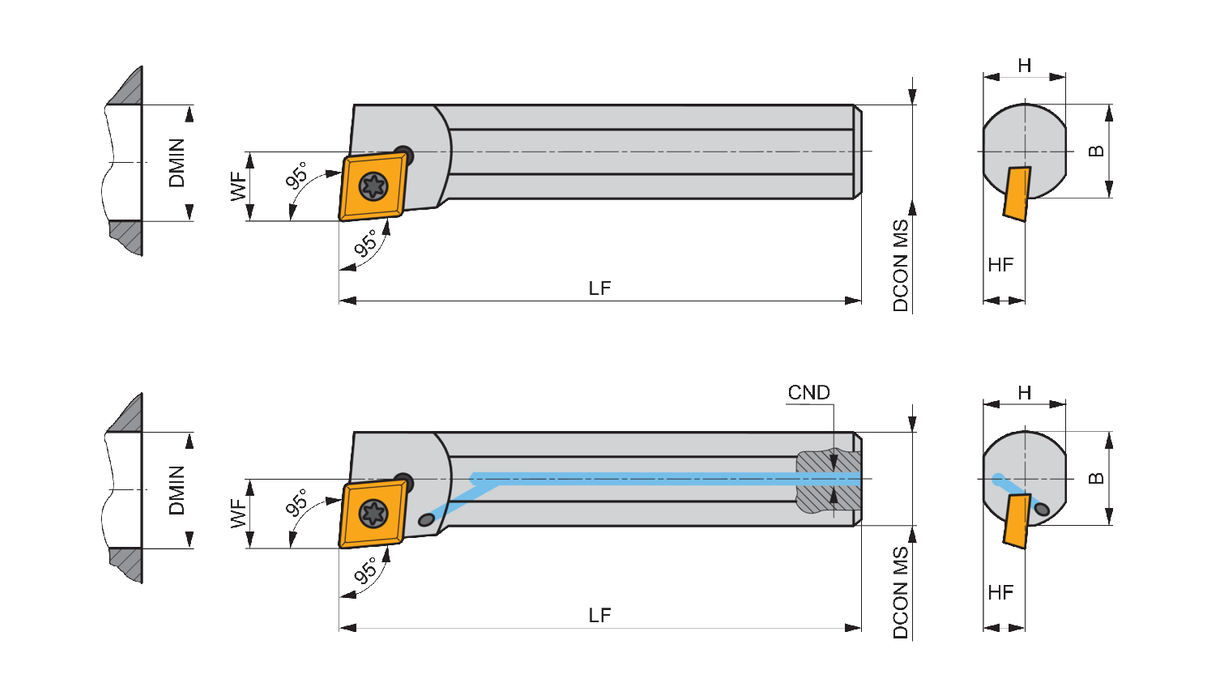

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)23.0 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Tool DesignCC
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number9003069
EAN3603604789608
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
A25T-SCLCR 09 — 3D Model STP Download
A25T-SCLCR 09 — 2D Model DXF Download
A25T-SCLCR 09 — Line Drawing PDF Download
