A25T-SDQCL 11

A25T-SDQCL 11

SKU DOR8922991
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 - $295.00
$295.00
$295.00 - $295.00
$295.00

Sold in packs of: 1

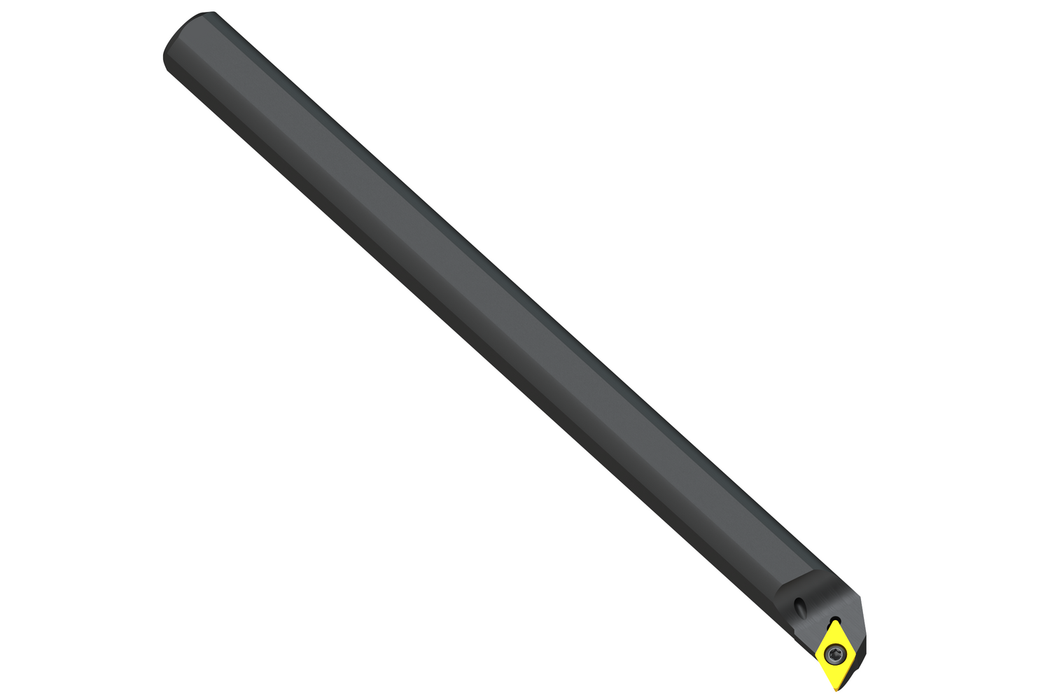

A25T-SDQCL 11 Internal turning tool. Steel body. Boring operations. Longitudinal turning. Side and end cutting capability. Suitable for machining with and without shoulder. For general internal machining applications.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SDQCL 11
Product Number8922991
Product FamilySDQC(RL) INT

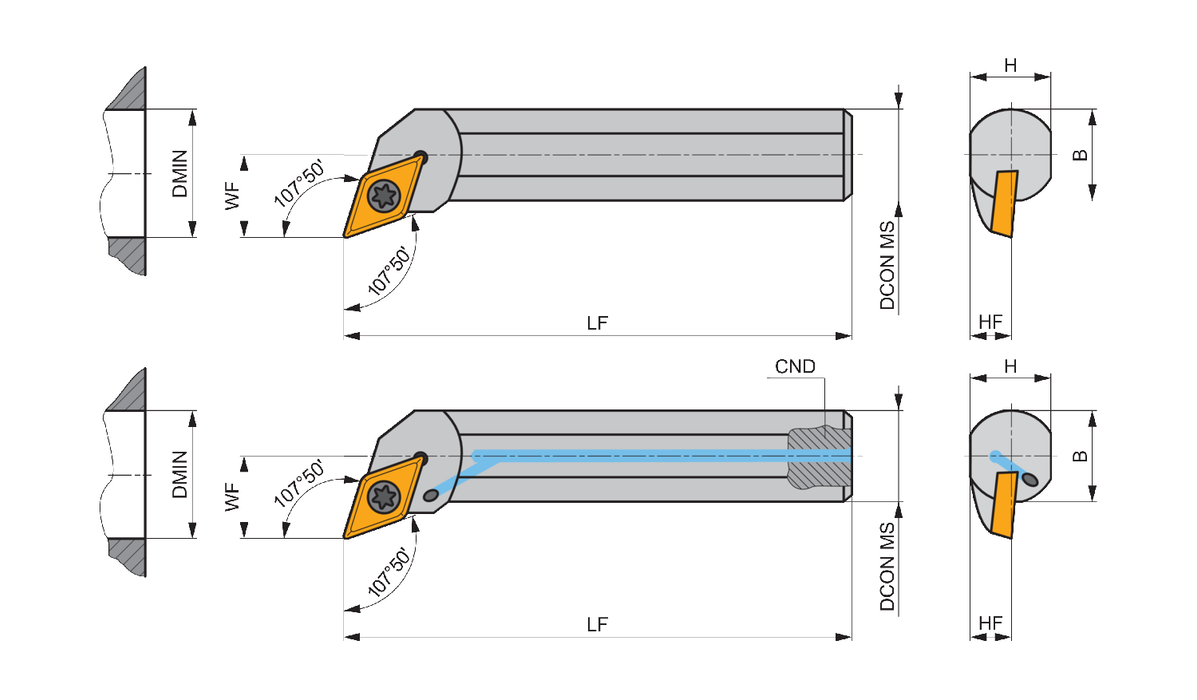

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)23.0 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Tool DesignDC
Direction of ToolLeft
Through Coolant Yes
Reference Numbers
EDP Number8922991
EAN3603604720328
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Primary use
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
A25T-SDQCL 11 — 3D Model STP Download
A25T-SDQCL 11 — 2D Model DXF Download
A25T-SDQCL 11 — Line Drawing PDF Download
