C6-BS-SFN4260

C6-BS-SFN4260

SKU DOR9002776
by Dormer Pramet
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,775.71 - $1,775.71
$1,775.71
$1,775.71 - $1,775.71
$1,775.71

Sold in packs of: 1

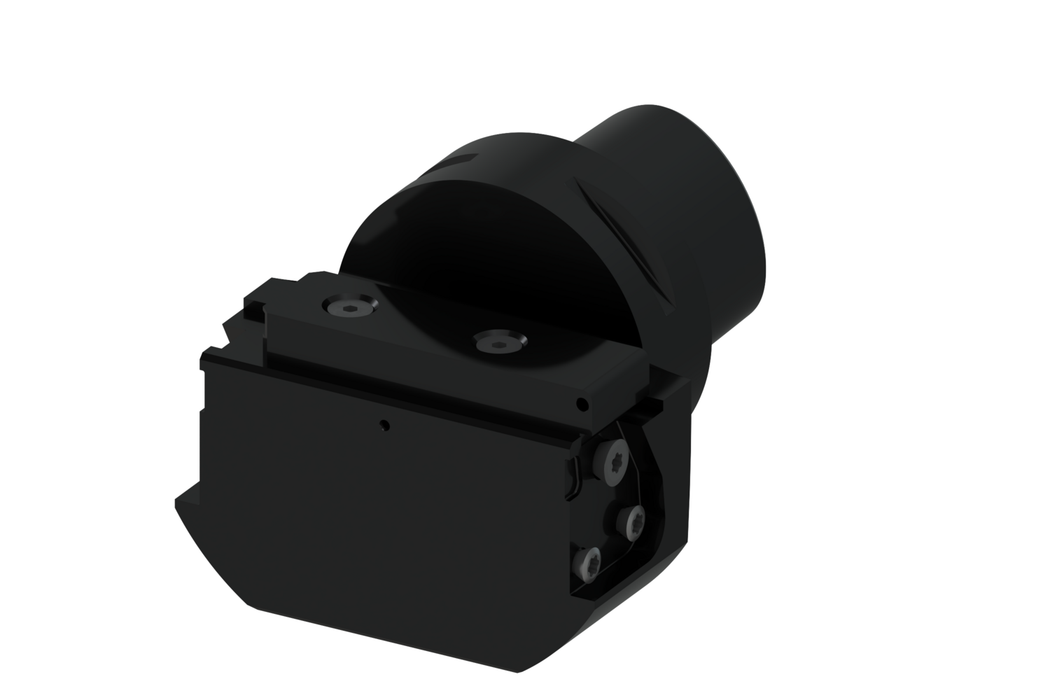

C6-BS-SFN4260 is modular tool holder for BS type grooving and parting-off blades with adjustable coolant block. Tool shank according to ISO 26623 (Polygon Shank Coupling) size C6.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6-BS-SFN4260
Product Number9002776
Product FamilyC.-BS-F EXT

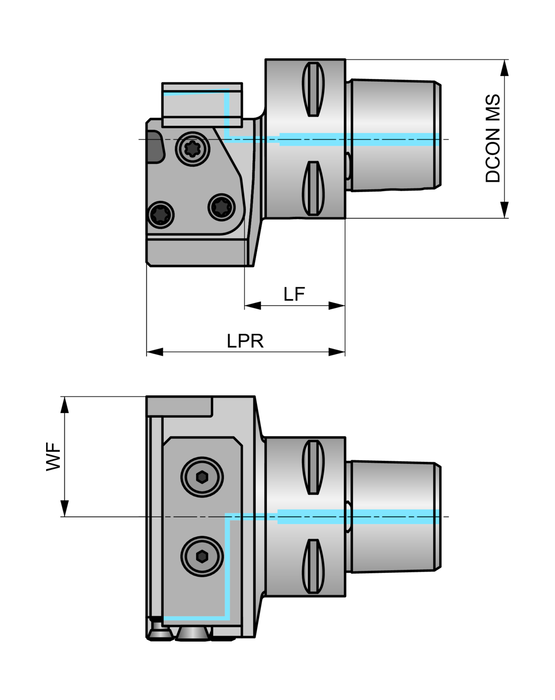

Dimensions
Functional Length — in (LF)1.39"
Functional Length — mm (LF)35.3 mm
Connection Dia. — in (DCON)2.48"
Connection Dia. — mm (DCON)63.0 mm
Tool Information
Direction of ToolNeutral
Through Coolant Yes
Reference Numbers
EDP Number9002776
EAN3603604791267
File Type Download
C6-BS-SFN4260 — 3D Model STP Download
C6-BS-SFN4260 — 2D Model DXF Download
C6-BS-SFN4260 — Line Drawing PDF Download
