CCMT 21.50.5-NF2:T9425

CCMT 21.50.5-NF2:T9425

SKU DOR8985931
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.54 - $11.54
$11.54
$11.54 - $11.54
$11.54

Sold in packs of: 10

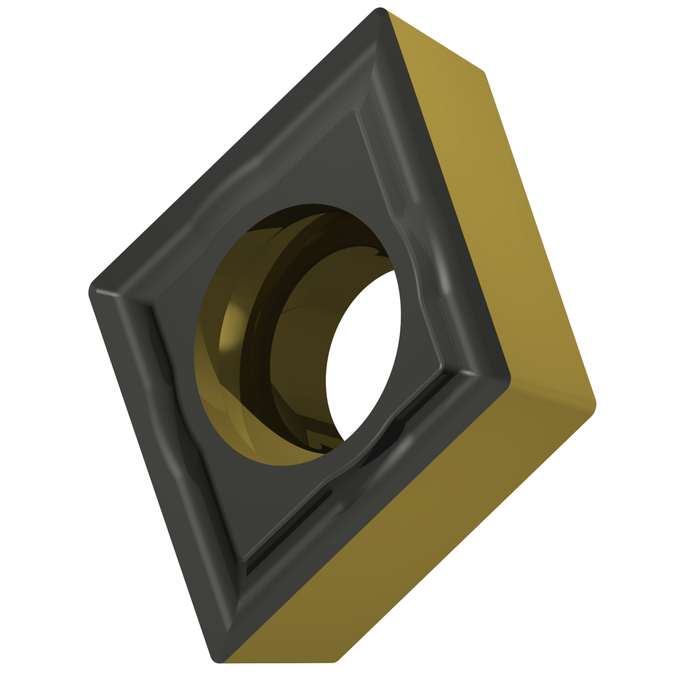

Single-sided Positive turning insert, C - rhombic 80° included angle, size 6 with corner radius 0.2 mm. Combination of chipbreaker NF2 chip breaker is sharp and the first choice for finishing of Stainless steels. It features positive rake angle without T-land. It's also suitable for Super-alloys, and conditionally for Steels, Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 21.50.5-NF2:T9425
GradeT9425
Chipbreaker (CBMD)NF2
Product Number8985931
Product FamilyCCMT

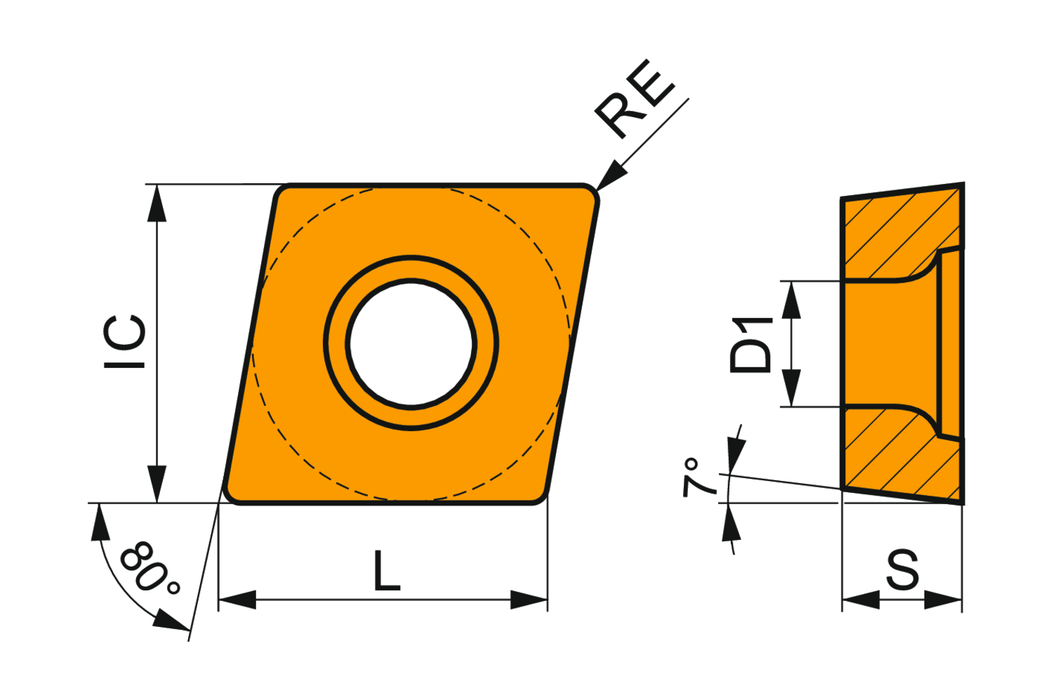

Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Tool DesignCC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985931
EAN3603604777377
Material Group Suitability
P — Steel and Cast Steel Possible use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
CCMT 21.50.5-NF2:T9425 — Line Drawing PDF Download
