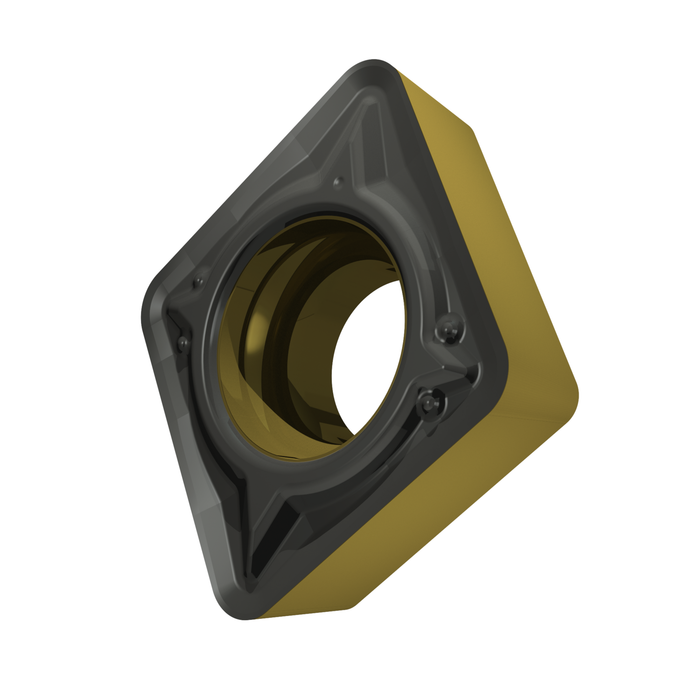

CCMT 21.52-FM:T9425

CCMT 21.52-FM:T9425

SKU DOR8985939
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.86 - $10.86
$10.86
$10.86 - $10.86
$10.86

Sold in packs of: 10

Single-sided Positive turning insert, C - rhombic 80° included angle, size 6 with corner radius 0.8 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 21.52-FM:T9425
GradeT9425
Chipbreaker (CBMD)FM
Product Number8985939
Product FamilyCCMT
Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignCC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985939
EAN3603604777452
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
File Type Download
CCMT 21.52-FM:T9425 — Line Drawing PDF Download
