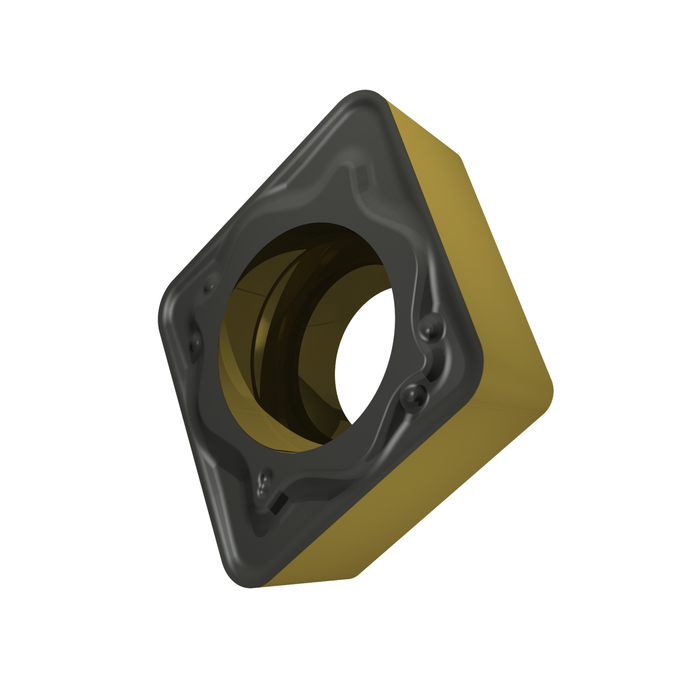

CCMT 32.53-RM:T9425

CCMT 32.53-RM:T9425

SKU DOR8985964
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.43 - $12.43
$12.43
$12.43 - $12.43
$12.43

Sold in packs of: 10
Single-sided Positive turning insert, C - rhombic 80° included angle, size 9 with corner radius 1.2 mm. Combination of chipbreaker RM chip breaker is robust and the first choice for roughing of Steels and Cast irons. It features positive rake angle and stable, wide T-land. It's also suitable for Stainless steels, and conditionally for Super-alloys and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly in

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 32.53-RM:T9425
GradeT9425
Chipbreaker (CBMD)RM
Product Number8985964
Product FamilyCCMT

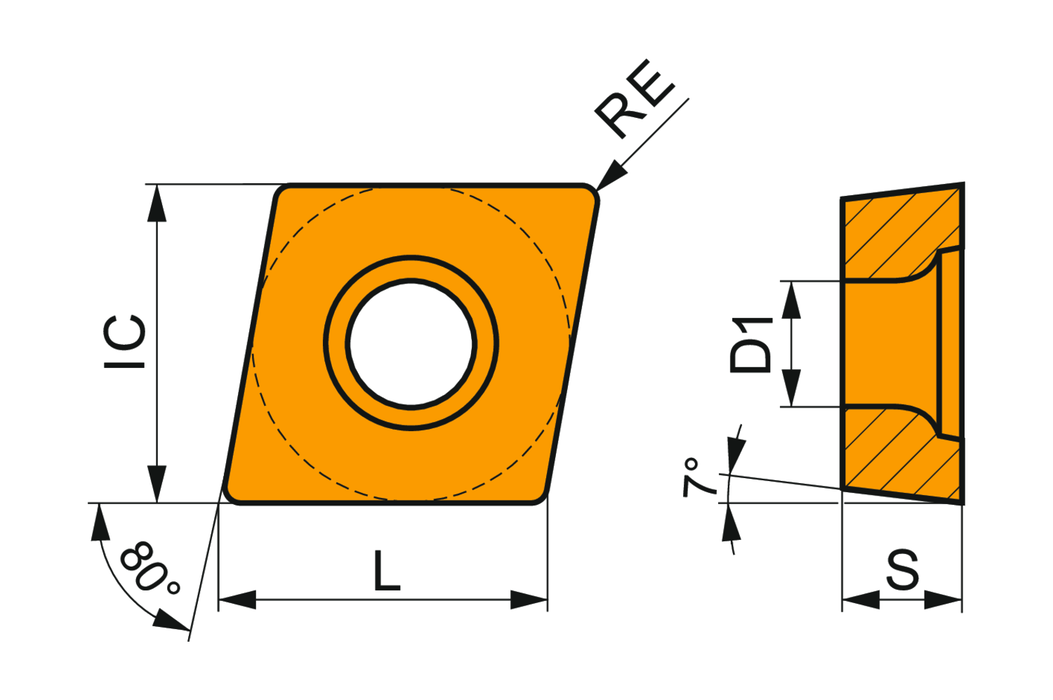

Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Tool DesignCC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985964
EAN3603604777698
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
CCMT 32.53-RM:T9425 — Line Drawing PDF Download
