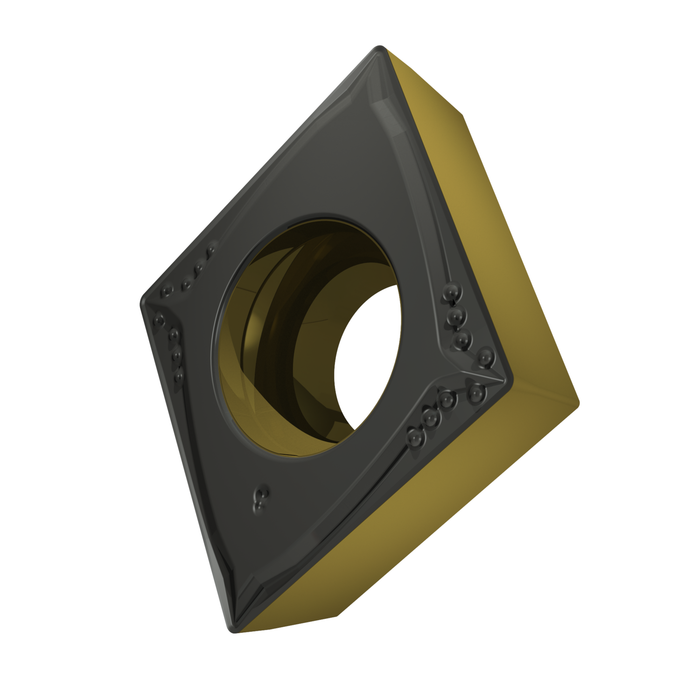

CCMT 431-FM:T9425

CCMT 431-FM:T9425

SKU DOR8985965
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.43 - $17.43
$17.43
$17.43 - $17.43
$17.43

Sold in packs of: 10

Single-sided Positive turning insert, C - rhombic 80° included angle, size 12 with corner radius 0.4 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 431-FM:T9425
GradeT9425
Chipbreaker (CBMD)FM
Product Number8985965
Product FamilyCCMT
Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignCC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985965
EAN3603604777704
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
File Type Download
CCMT 431-FM:T9425 — Line Drawing PDF Download
