CCMW 21.51:T5405

CCMW 21.51:T5405

SKU DOR8985025
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.61 - $10.61
$10.61
$10.61 - $10.61
$10.61

Sold in packs of: 10

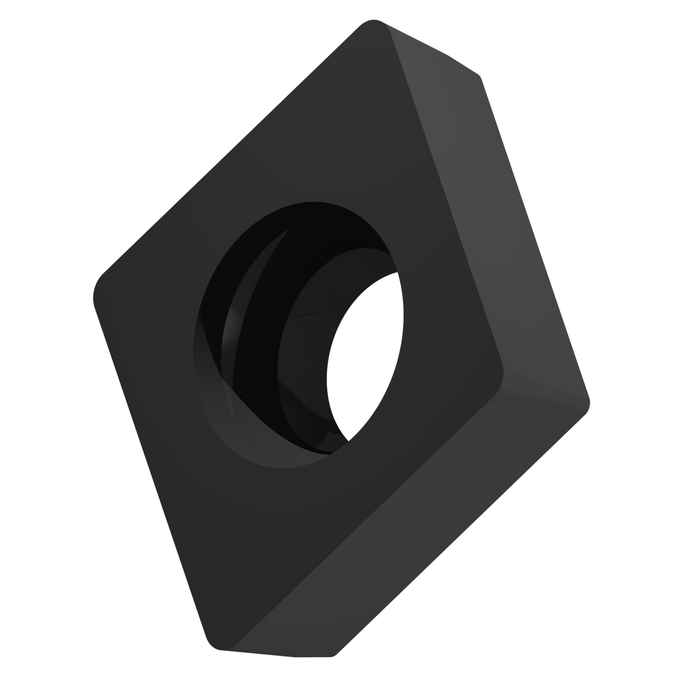

Single-sided Positive turning insert, C - rhombic 80° included angle, size 6 with corner radius 0.4 mm. Combination of chipbreaker .CMW flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMW 21.51:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8985025
Product FamilyCCMW

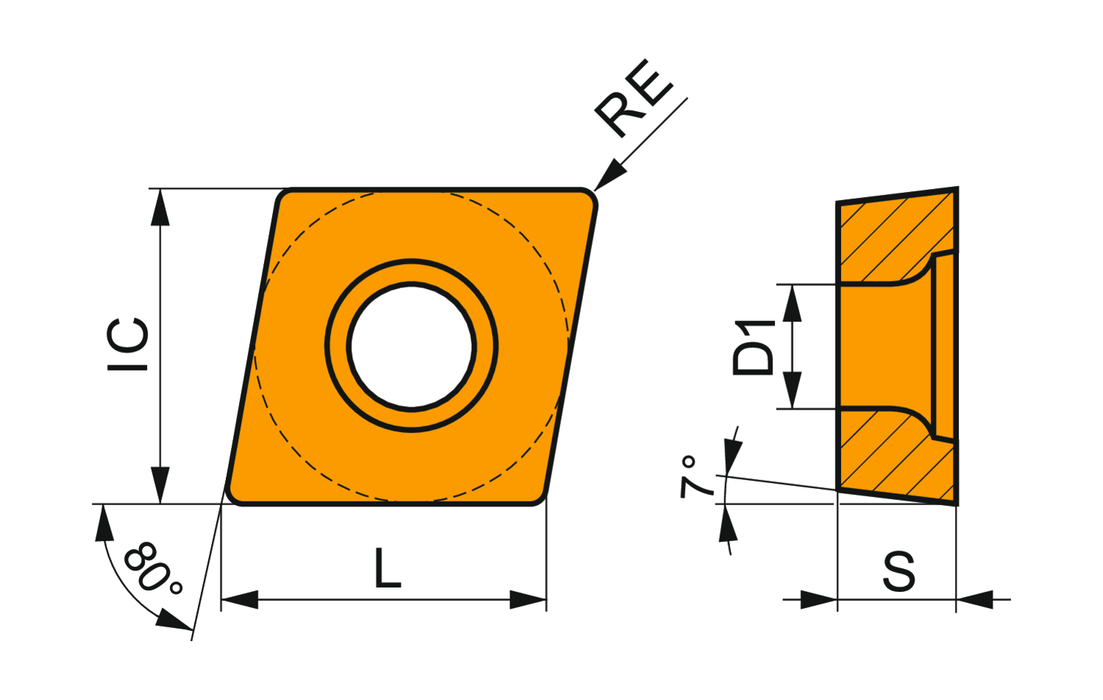

Insert Geometry
Insert DesignCCMW
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Tool DesignCC
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985025
EAN3603604774321
Material Group Suitability
K — Cast Iron Primary use
File Type Download
CCMW 21.51:T5405 — Line Drawing PDF Download
