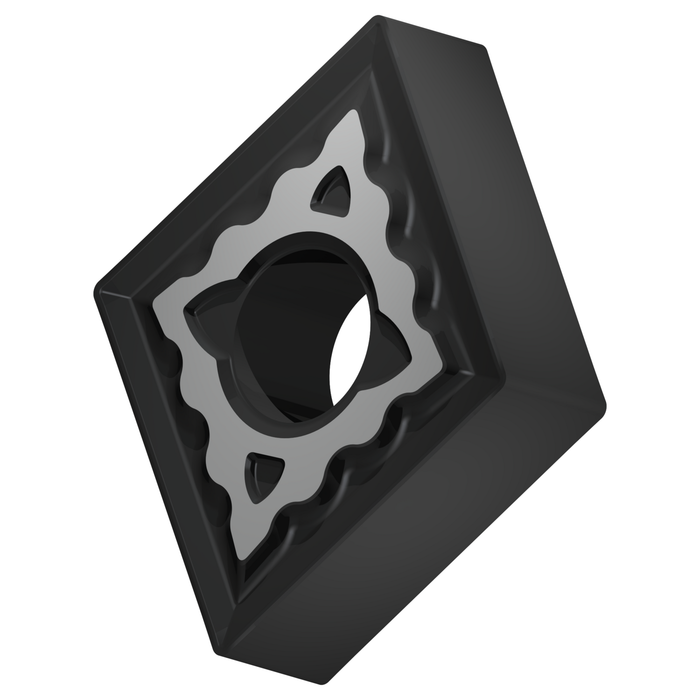

CNMG 431-KM:T5405

CNMG 431-KM:T5405

SKU DOR8984945
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 - $14.43
$14.43
$14.43 - $14.43
$14.43

Sold in packs of: 10

Double-sided Negative turning insert, C - rhombic 80° included angle, size 12 with corner radius 0.4 mm. Combination of chipbreaker KM chip breaker is versatile and the first choice for medium machining of Cast irons. It features slightly positive rake angle and stable, wide T-land. It's also conditionally suitable for Steels and Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMG 431-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8984945
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Tool DesignCN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984945
EAN3603604772525
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download
CNMG 431-KM:T5405 — Line Drawing PDF Download
