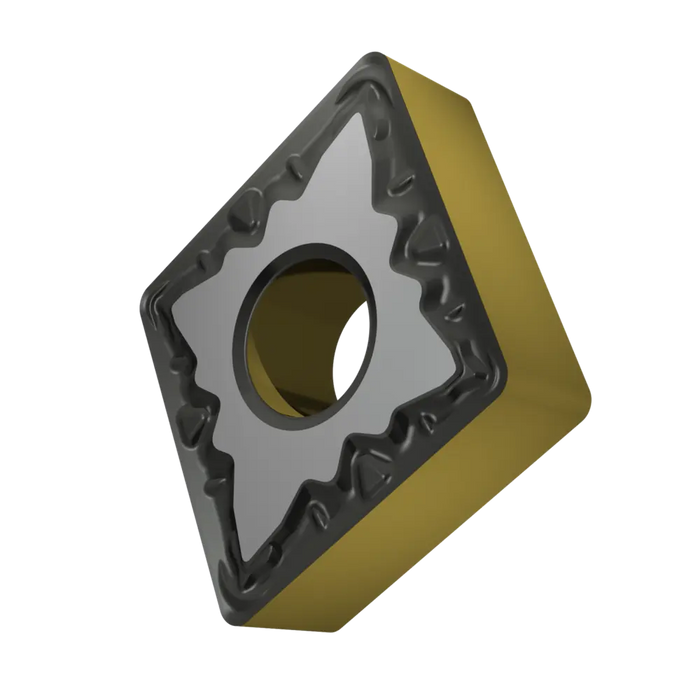

CNMG 432-FM:T9425

CNMG 432-FM:T9425

SKU DOR8182920
by Dormer Pramet
Primary Use: Possible Use:

Double-sided Negative turning insert, C - rhombic 80° included angle, size 4 with corner radius 0.031 inch. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels and Cast irons. It features slightly positive rake angle and positive, narrow T-land. It's also conditionally suitable for Stainless steels and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$12.67 - $12.67
$12.67
$14.71
$14.71 - $14.71
$14.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: FM

Grade: T9425

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 8182920

EAN: 3603603952072

MFG Part Number: 8182920
